Technics SU-G700E User Manual

46

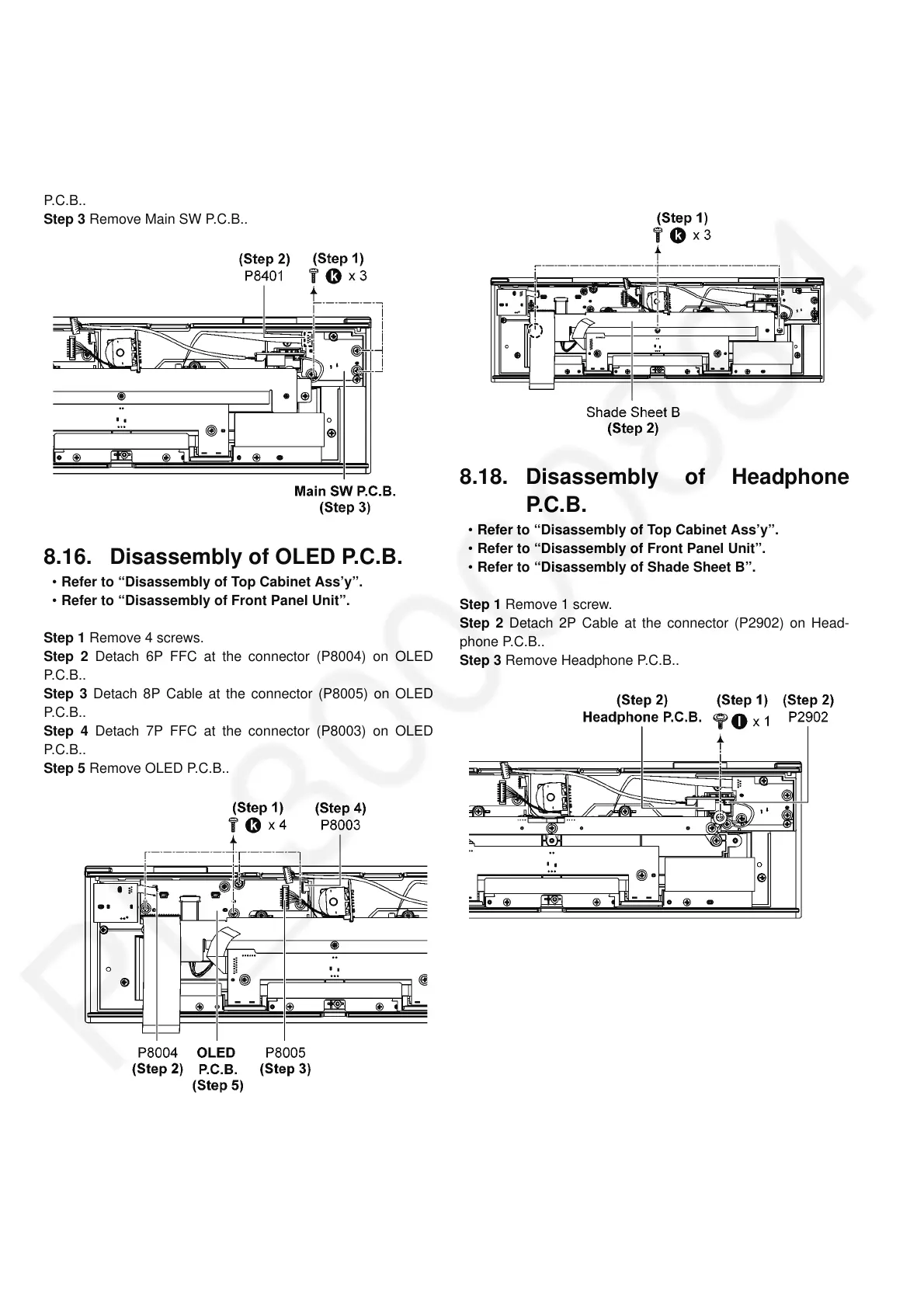

8.15. Disassembly of Main SW P.C.B.
• Refer to “Disassembly of Top Cabinet Ass’y”.
• Refer to “Disassembly of Front Panel Unit”.
Step 1 Remove 3 screws.
Step 2 Detach 7P FFC at the connector (P8401) on Main SW
P.C .B..
Step 3 Remove Main SW P.C.B..
8.16. Disassembly of OLED P.C.B.
• Refer to “Disassembly of Top Cabinet Ass’y”.
• Refer to “Disassembly of Front Panel Unit”.
Step 1 Remove 4 screws.
Step 2 Detach 6P FFC at the connector (P8004) on OLED
P.C .B..
Step 3 Detach 8P Cable at the connector (P8005) on OLED
P.C .B..
Step 4 Detach 7P FFC at the connector (P8003) on OLED
P.C .B..
Step 5 Remove OLED P.C.B..
8.17. Disassembly of Shade Sheet B
• Refer to “Disassembly of Top Cabinet Ass’y”.
• Refer to “Disassembly of Front Panel Unit”.
Step 1 Remove 3 screws.
Step 2 Remove Shade Sheet B.
8.18. Disassembly of Headphone
P. C. B.
• Refer to “Disassembly of Top Cabinet Ass’y”.
• Refer to “Disassembly of Front Panel Unit”.
• Refer to “Disassembly of Shade Sheet B”.
Step 1 Remove 1 screw.
Step 2 Detach 2P Cable at the connector (P2902) on Head-
phone P.C.B..
Step 3 Remove Headphone P.C.B..

Technics SU-G700E Specifications

General

Type	Integrated Amplifier
Input Impedance	47 kΩ
Input Sensitivity	200 mV
USB DAC	Yes
Output Power (8 Ohms)	70 W
Output Power (4 Ohms)	140 W
Total Harmonic Distortion (THD)	0.01%
Signal-to-Noise Ratio	100 dB
Digital Inputs	Optical x 2, Coaxial x 1
Analog Inputs	4 x RCA
Analog Outputs	Line x 1
DSD Playback	Yes
PCM Playback	Yes (up to 384kHz / 32bit)
