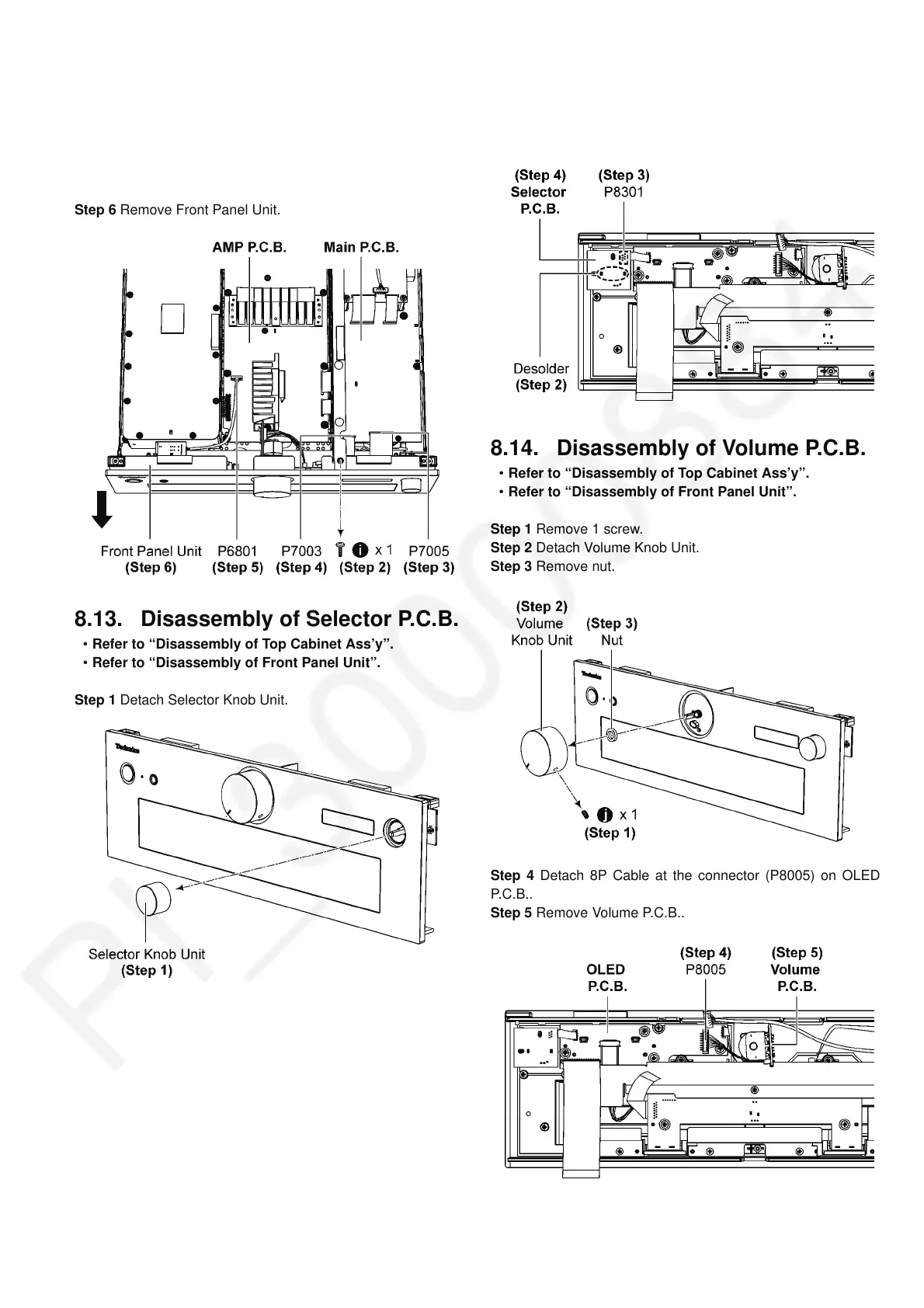

Step 2 Remove 1 screw.
Step 3 Detach 30P FFC at the connector (P7005) on Main
P.C .B..
Step 4 Detach 14P FFC at the connector (P7003) on Main
P.C .B..
Step 5 Detach 7P Cable at the connector (P6801) on AMP
P.C .B..
Step 6 Remove Front Panel Unit.
8.13. Disassembly of Selector P.C.B.
• Refer to “Disassembly of Top Cabinet Ass’y”.
• Refer to “Disassembly of Front Panel Unit”.
Step 1 Detach Selector Knob Unit.
Step 2 Desolder the pins of Selector P.C.B..
Step 3 Detach 6P FFC at the connector (P8301) on Selector
P. C .B ..
Step 4 Remove Selector P.C.B..
8.14. Disassembly of Volume P.C.B.
• Refer to “Disassembly of Top Cabinet Ass’y”.
• Refer to “Disassembly of Front Panel Unit”.
Step 1 Remove 1 screw.
Step 2 Detach Volume Knob Unit.
Step 3 Remove nut.
Step 4 Detach 8P Cable at the connector (P8005) on OLED
P. C .B ..
Step 5 Remove Volume P.C.B..
