GROUP CYCLE: Service & Maintenance manual rev. 6.4
Page 6.2
6.2 DISASSEMBLING SADDLE

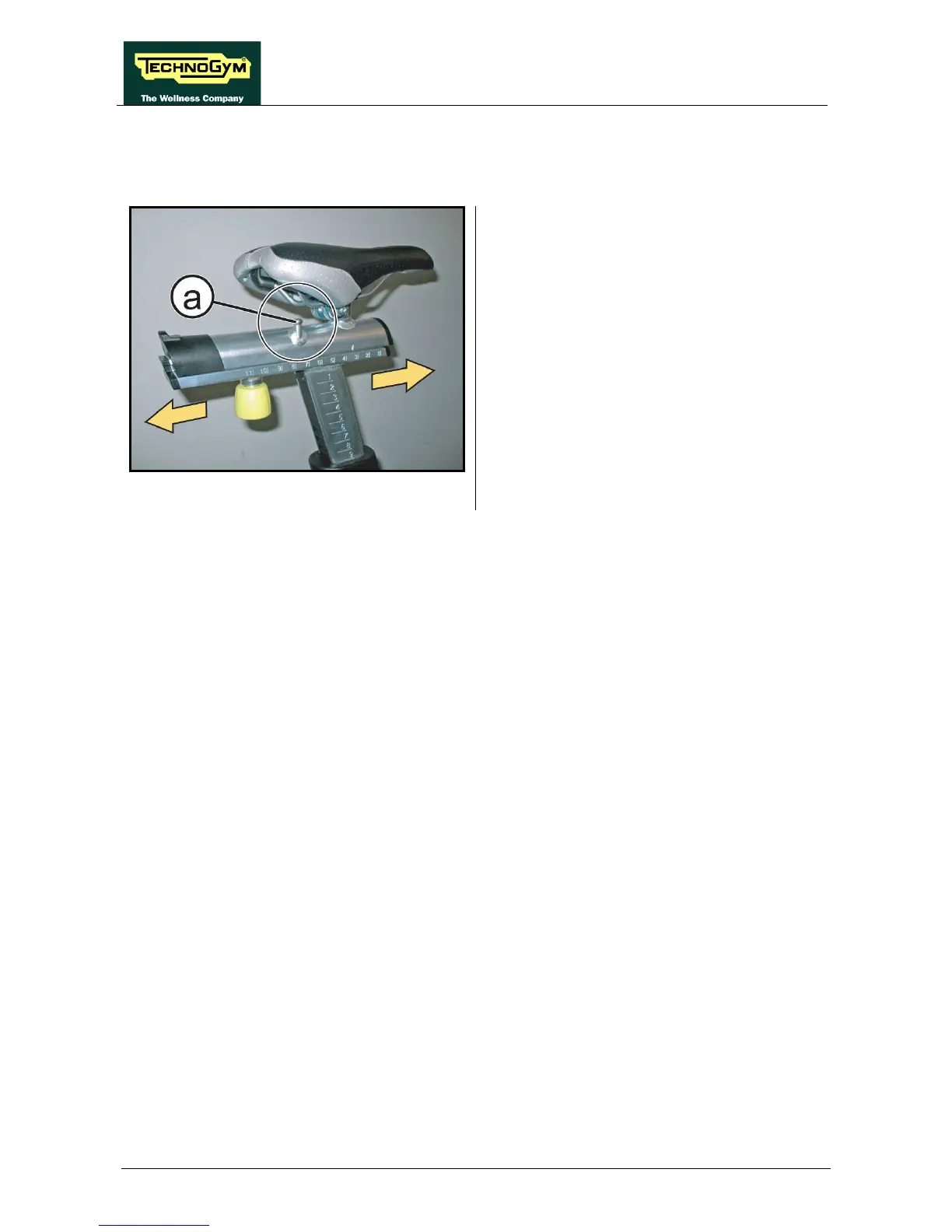

Figure 6.2-1
1. Lift up the pin (a)
, sliding the saddle
following the arrows.
2. Remove the saddle group.
To reassemble the saddle, carry out the above
steps in reverse order.
