7.6 ADJUSTING THE BRAKING RESISTANCE

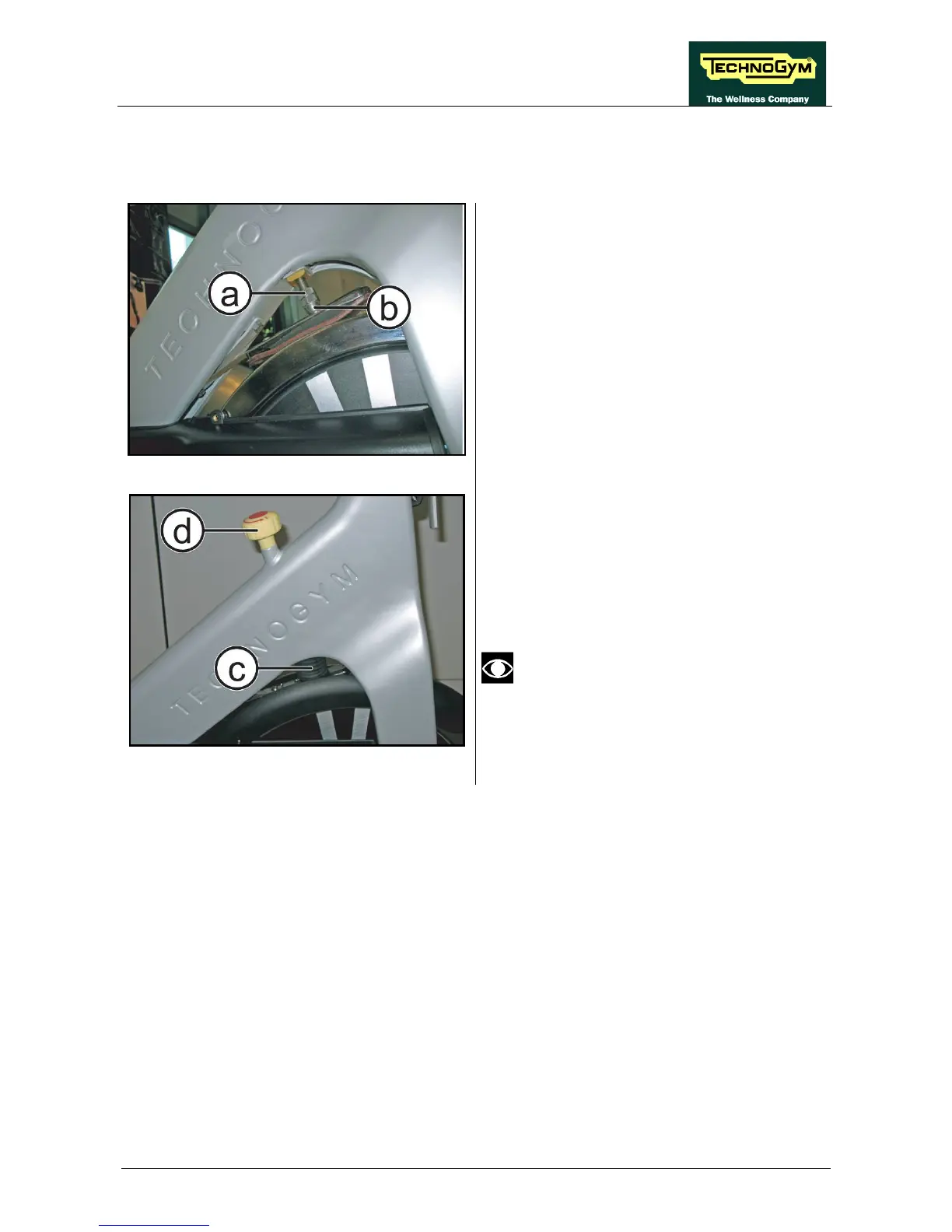

Figure 7.6-1
Carry out the operation at point (4) of Figure
6.7-2, at paragraph: 6.7.1“
Disassembling brake
knob”.
1. Loosen the counter nut (a)
and back off the
close nut (b) of 1 or 2 turns counter-
clockwise, taking care to keep it engaged of
minimum 4 or 5 turns on the pin.
2. Lock down the counter nut (a) again.
Figure 7.6-2
3. Mount the protection guard (c) again.
4. Look completely down the brake knob (d)
and check the flywheel is totally locked and
it’s not possible cycling.
With the knob completely unscrewed,
the flywheel must be free to move
without any resistance.
