GROUP CYCLE: Service & Maintenance manual rev. 6.4
Page 7.1
7 ADJUSTMENT
7.1 ADJUSTING THE CHAIN TENSION AND FLYWHEEL
PARALLELISM

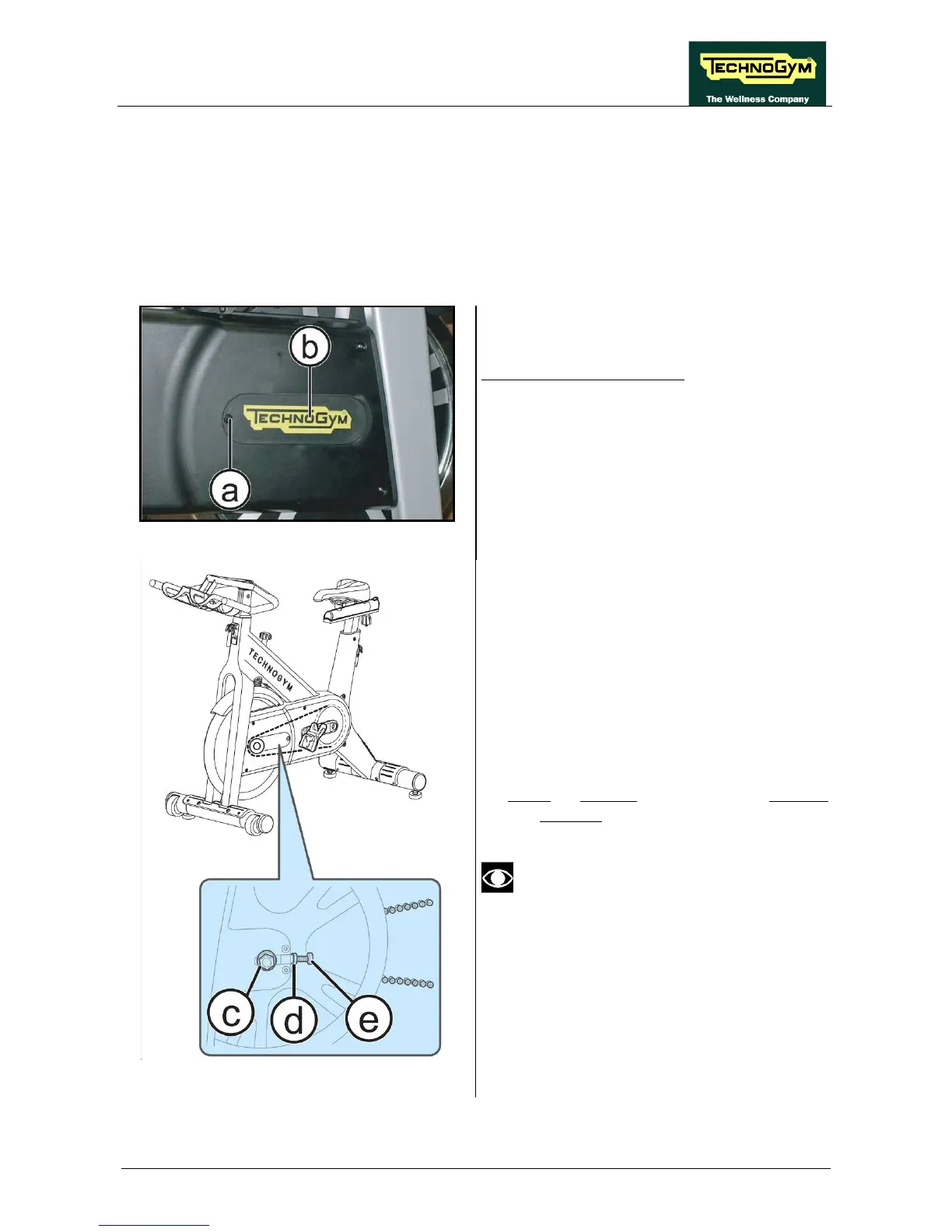

Figure 7.1-1
On both side of the machine:
1. Back off the screw (a)
, using a 3mm
hexagonal wrench.
2. Remove the guard (b).
Figure 7.1-2
3. Loosen the nut (c) using a 19mm wrench and
the counter nut (d) using a 10mm wrench.
4. Screw (or back off) the screws (e) to increase
(or decrease) the chain tension,
using a
10mm wrench.
Check the properly chain tension as
indicated follows::
Continued on following page...
