6.10 DISASSEMBLING THE BELT AND FLYWHEEL GROUP

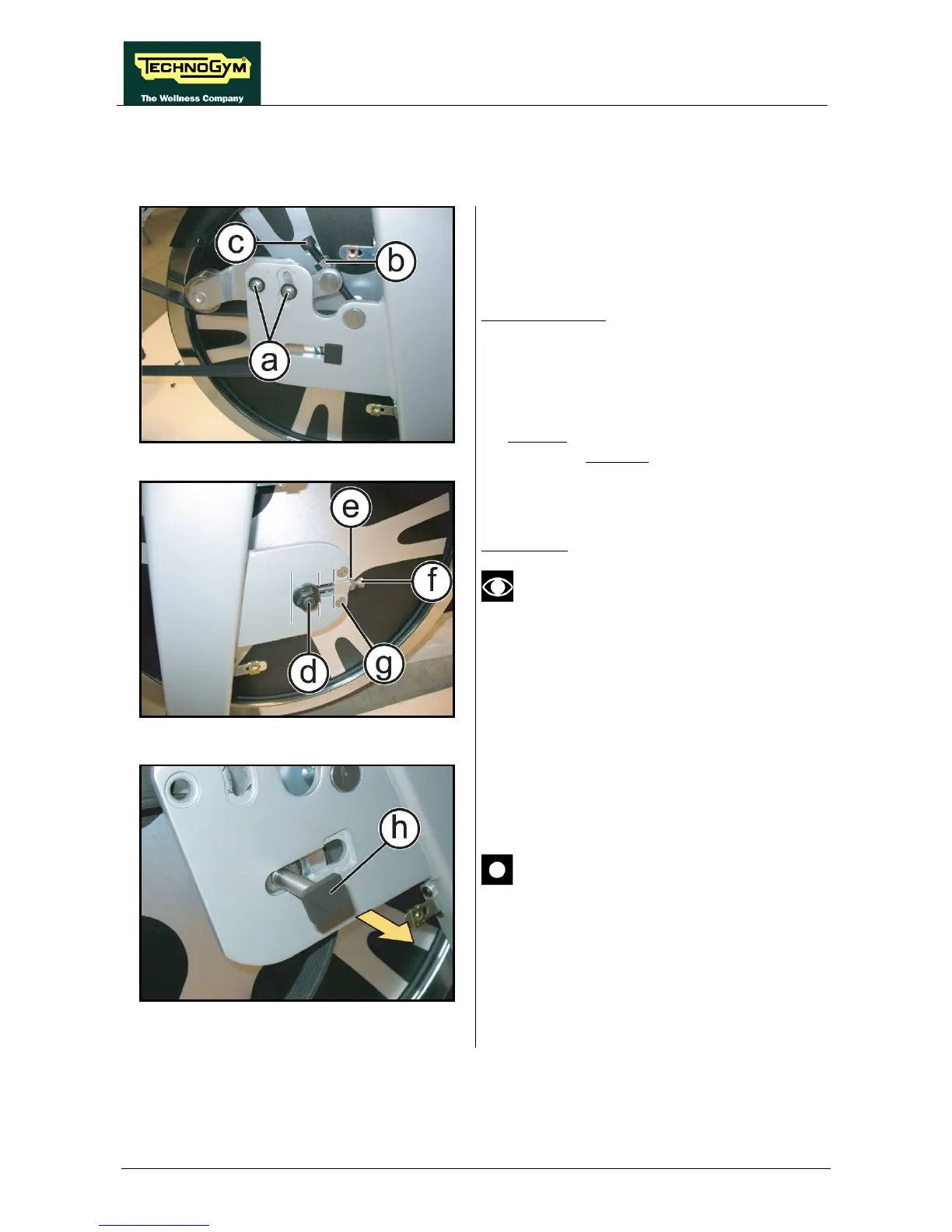

Figure 6.10-1
Carry out the procedure of disassembly
described in paragraph: 6.4“
Disassembling the
Guards”.
On the right side:
1. Loosen the 2 screws (a), using a 5mm
hexagonal wrench.
2. Loosen the counter nut (b) using a 17mm
wrench.
3. Back off the bolt (c) using a 8mm hexagonal
wrench, to decrease the tension on the belt.
Figure 6.10-2
On left side:
Mark with a marking-
pen the starting
reference position of nut (d).
4. Back off the nut (d) using a 19mm wrench.
5. Loosen the counter-nut (e) and the screw (f)
using a 10mm wrench.
Figure 6.10-3
6. Pull out the shaft (h).
7. Remove the flywheel group with caution.
8. Now is possibl
e to remove the belt from the
pulley.
CAUTION: During the belt reassembly,
carry out the operation described at the
paragraphs: 7.2“
Adjusting the BELT
tension” and 7.3“
Adjusting the flywheel
parallelism (Belt version)”.
To reassemble the belt and the flywheel group,
carry out the above steps in reverse order,
considering the note below:
Continued on following page...
