Technogym GROUP CYCLE - Disassembling the Feet

GROUP CYCLE: Service & Maintenance manual rev. 6.4
Page 6.25

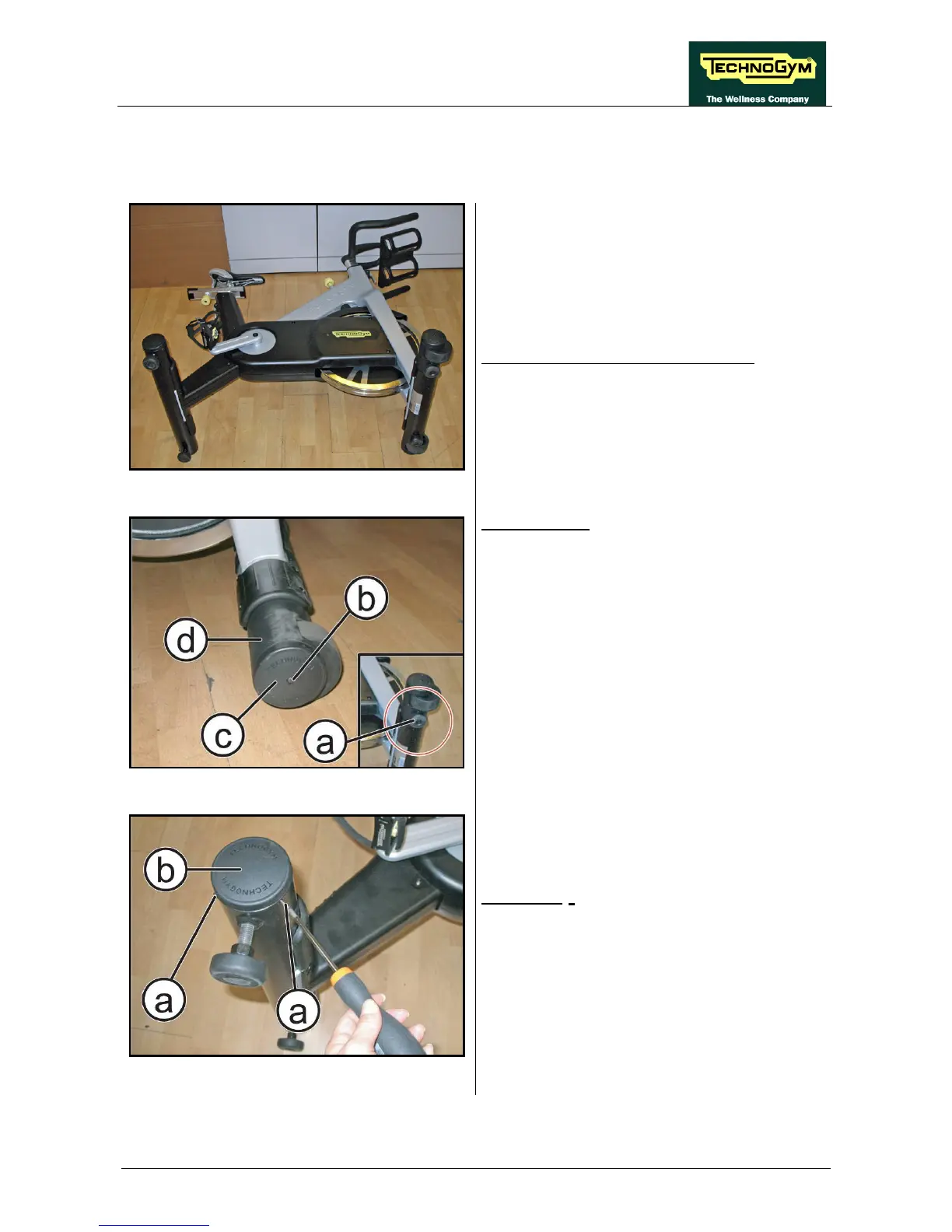

6.12 DISASSEMBLING THE FEET
Figure 6.12-1
Carefully urn the machine on one side
Figure 6.12-2
FRONT foot:
1. Back completely off the lower foot (a).
2. Back off the screw (b)
using a medium
Phillip screwdriver.
3. Remove the plug (c)
4. Remove the foot (d).
To reassemble the front foot, carry out the above
steps in reverse order.
Figure 6.12-3
REAR foot:
1. Back off the 2 screw (a)
using a small Phillip
screwdriver.
2. Remove the plug (b).
Continued on following page...
