Technogym GROUP CYCLE - Disassembling the Pedal Crank

GROUP CYCLE: Service & Maintenance manual rev. 6.4
Page 6.10
6.5.4 DISASSEMBLING THE PEDAL CRANK
6.5.4.1 CHAIN transmission version

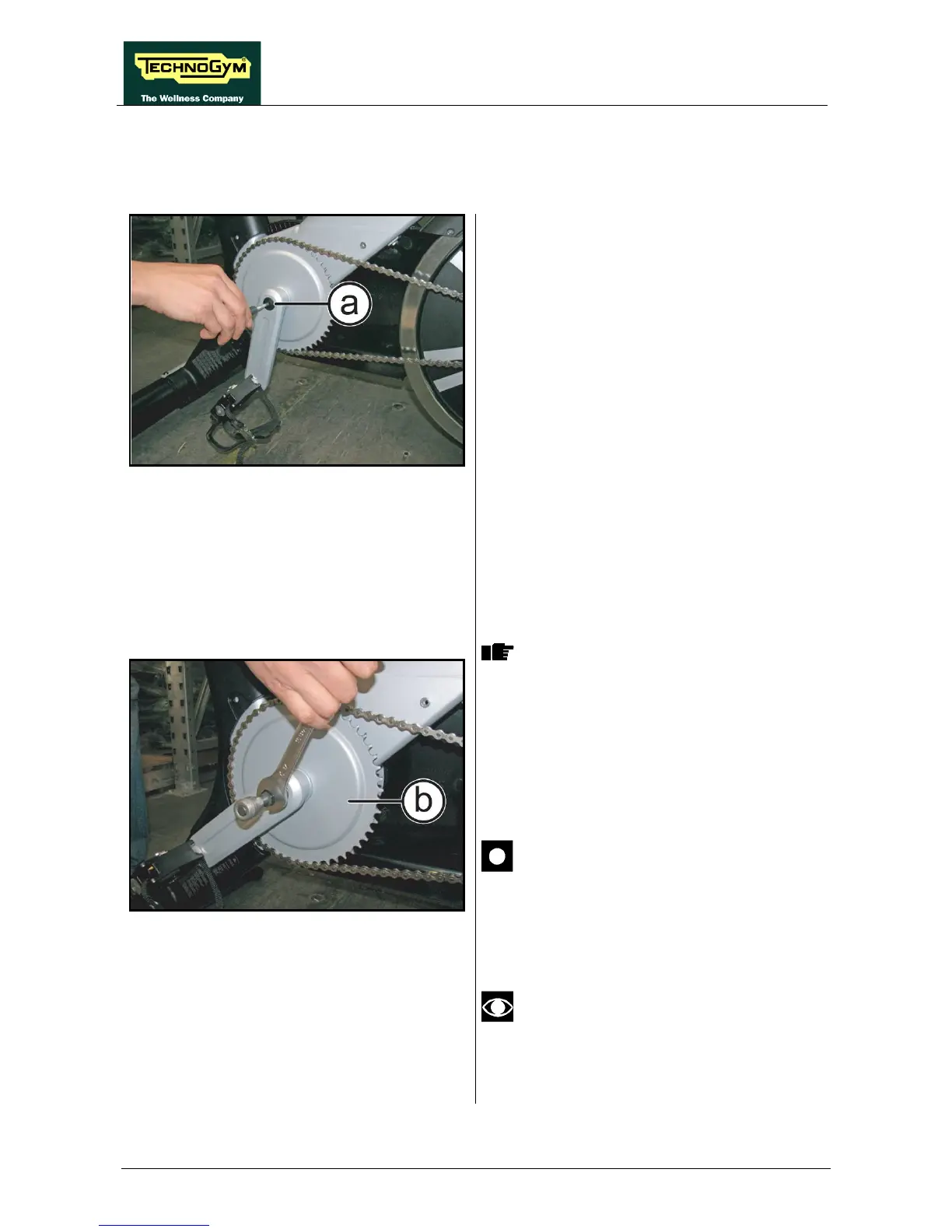

Figure 6.5-6
Disassemble the lateral casings as described in
paragraph: 6.4Disassembling the Guards”.
1. Remove the pedal crank cap (a)
using a flat
screwdriver.
Figure 6.5-7
2. Back off the pedal crank fixing screw using a
14mm socket wrench, as shown in the figure
at side.
3. Remove the pedal crank (b)
using a pedal
crank extractor.
If the pedal crank extractor pin is not
long enough, use an additional pin
checking the diameter is 10mm ≤ D
≤15mm.
To reassemble the pedal crank, carry out the
above steps in reverse order, considering the
note below:
CAUTION: The pedal cranks must be
lock down individually, one at a time.
This means you must block the pedal
crank it self while locking down using
the torque wrench.
During the reassembly place some drops
of Blue LOCTITE 243 and lock down
th
e pedal crank screw using a torque
wrench set for 40Nm.
Continued on following page...
