Technogym GROUP CYCLE - Disassembling Brake Pad

GROUP CYCLE: Service & Maintenance manual rev. 6.4
Page 6.17
6.7.2 DISASSEMBLING BRAKE PAD

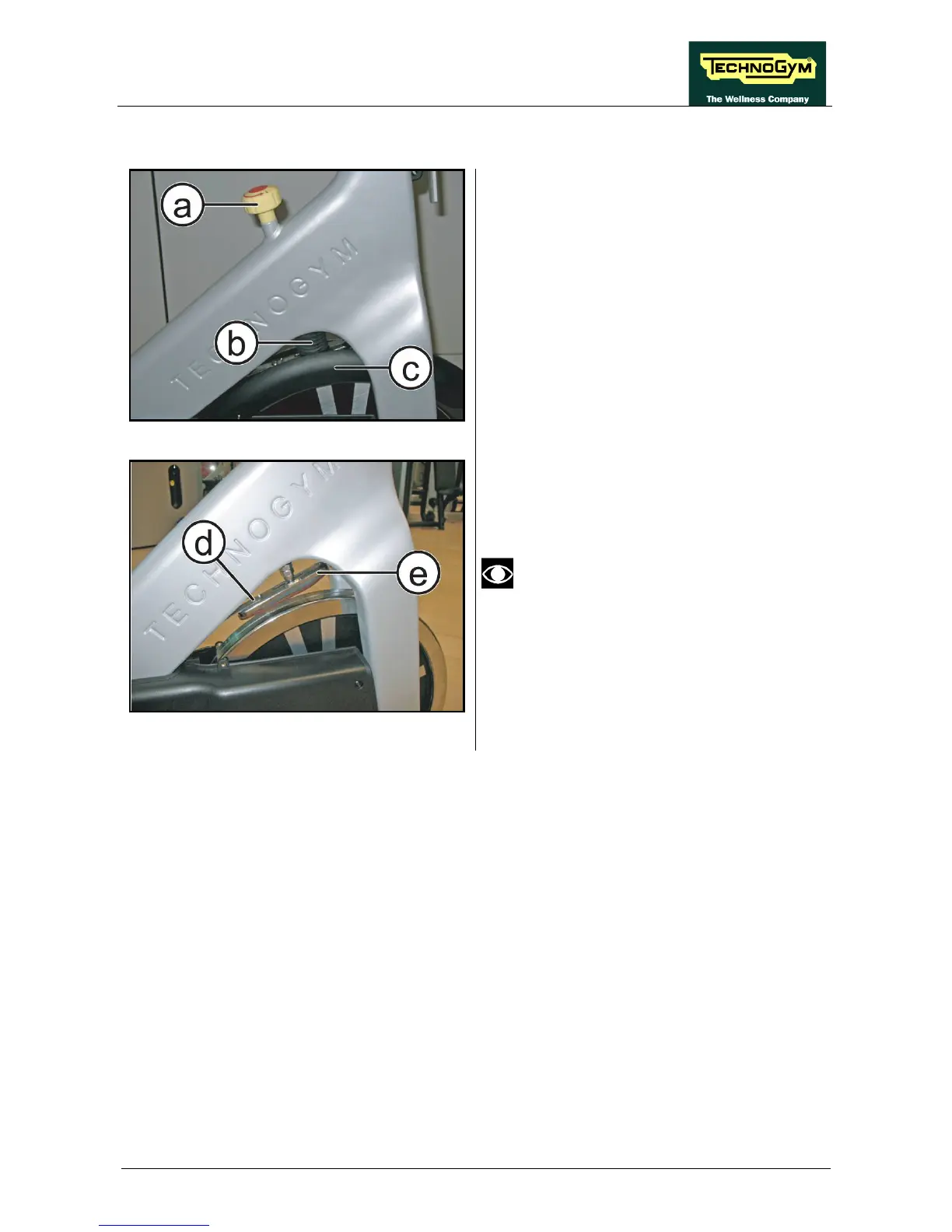

Figure 6.7-4
1. Back completely off the brake knob (a).
2. Remove the rubber bellow (b).
3. Remove the protection guard (c), as describe
at Figure 6.4-1.
Figure 6.7-5
4. Back off the screw (d) with an 8mm wrench.
5. Remove the brake pad (e).
The complete brake pad has to be
replaced in case of excessive wear. It’s
not possible to replace just the leather.
To reassemble the brake group, carry out the
above steps in reverse order.
