6.13 DISASSEMBLING THE WIRELESS CONSOLE
CAUTION: If replacing the Console or the RPMs Transmitter, it is necessary to carry
out the procedure of re-Pairing, as detailed in the User Manual.
6.13.1 DISASSEMBLING THE CONSOLE

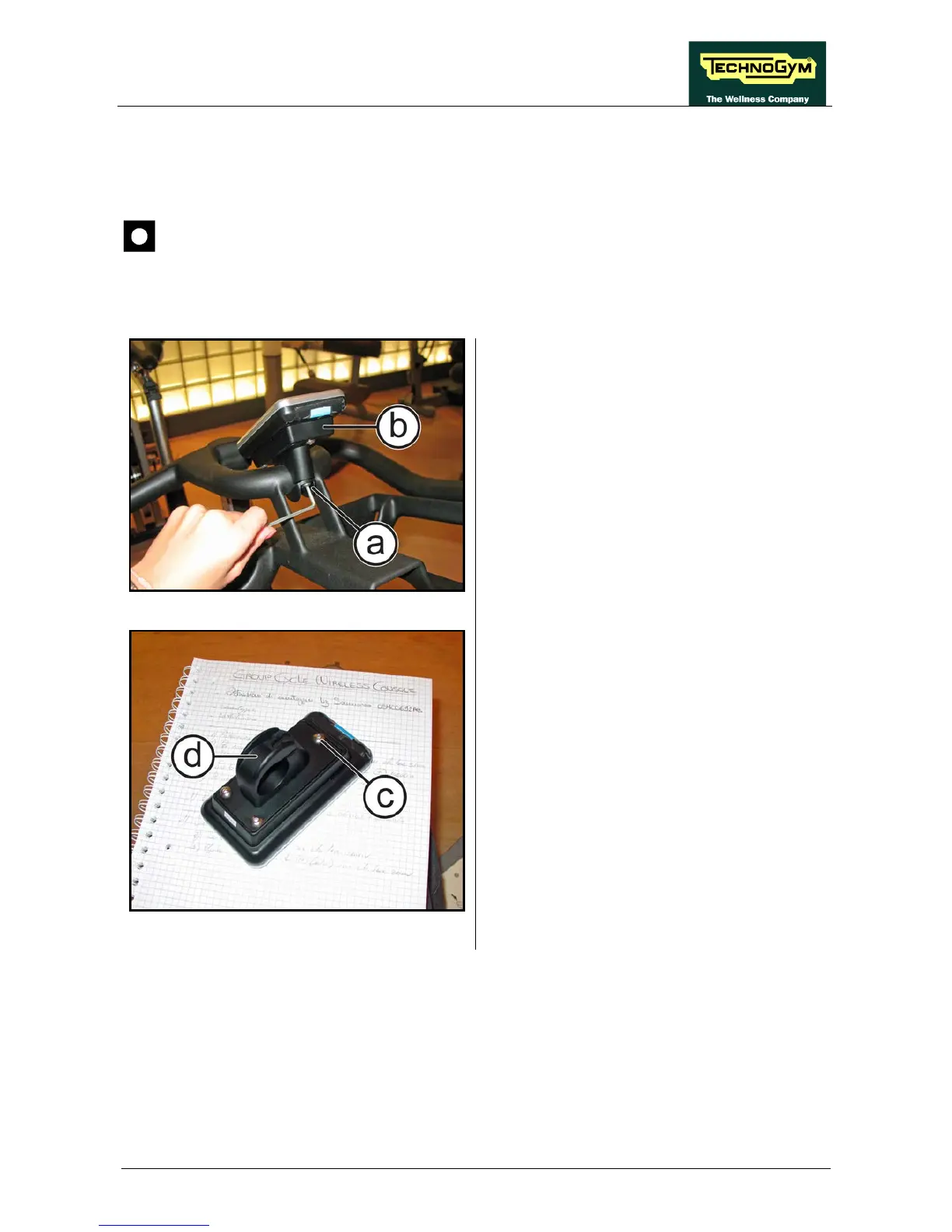

Figure 6.13-1
1. Back off the screw (a) using a 3mm
hexagonal wrench.
2. Remove the console (b).
Figure 6.13-2
3. Back off the 3 screws (c) using a 3mm
hexagonal wrench.
4. Remove the console support (d).
To reassemble the components removed, carry
out the above steps in reverse order..
