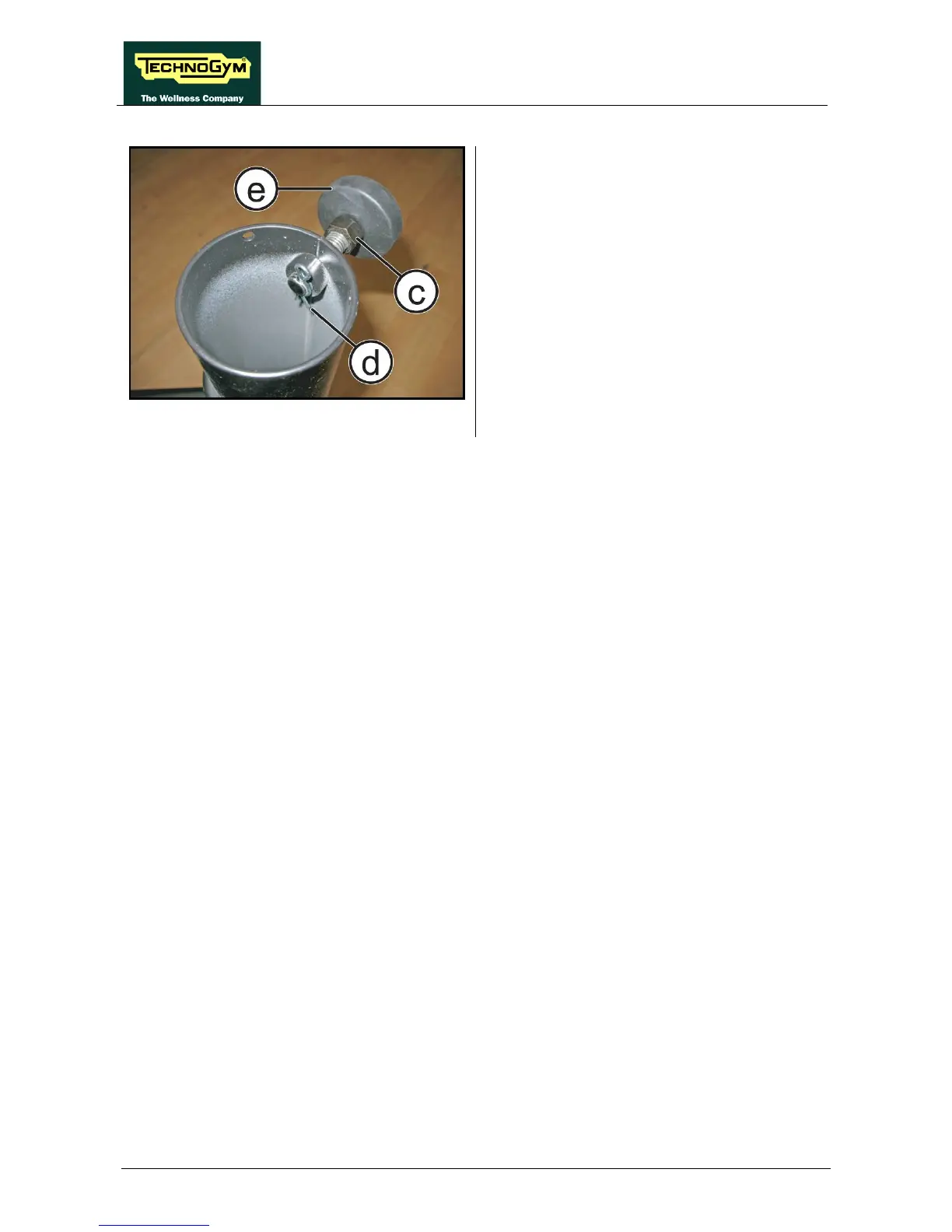

Figure 6.12-4
3. Loosen the counter-nut (c)
, using a 19mm
wrench.
4. Remove the split pin (d).
5. Back completely off the foot (e) to remove it.
To reassemble the rear foot, carry out the above
steps in reverse order.
