GROUP CYCLE: Service & Maintenance manual rev. 6.4
Page 6.4
6.4 DISASSEMBLING THE GUARDS

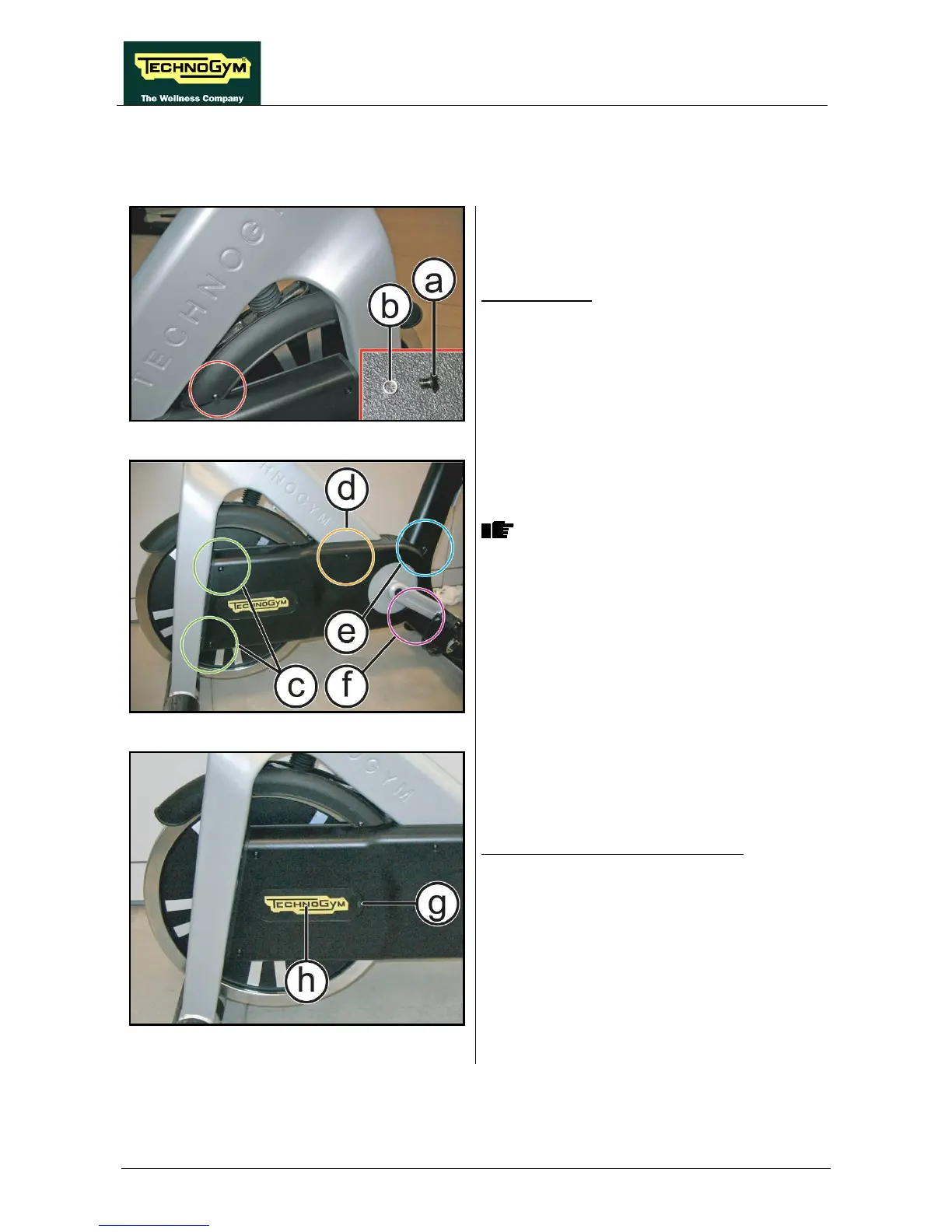

Figure 6.4-1
Lateral casings
1. Back off the screw (a)
using a 3mm
hexagonal wrench and remove the spacer (b).
Figure 6.4-2
2. Back off the 5 screws (c), (d), (e) and (f),
using a 3mm hexagonal wrench.
During the reassembly, place the screws
according to their lengths, as described
below:
• (c) = M5x12mm;
• (d) = M5x12mm (CHAIN model);
• (d) = M5x45mm (BELT model);
• (e) = M5x10mm;
• (f) = M5x20mm.
3. Remove the guard.
Figure 6.4-3
Disassembling the inspection casing:
4. Back off the screw (d) using a 3mm
hexagonal wrench.
5. Remove the inspection guard (e).
Continued on following page...
