GROUP CYCLE: Service & Maintenance manual rev. 6.4
Page 6.5

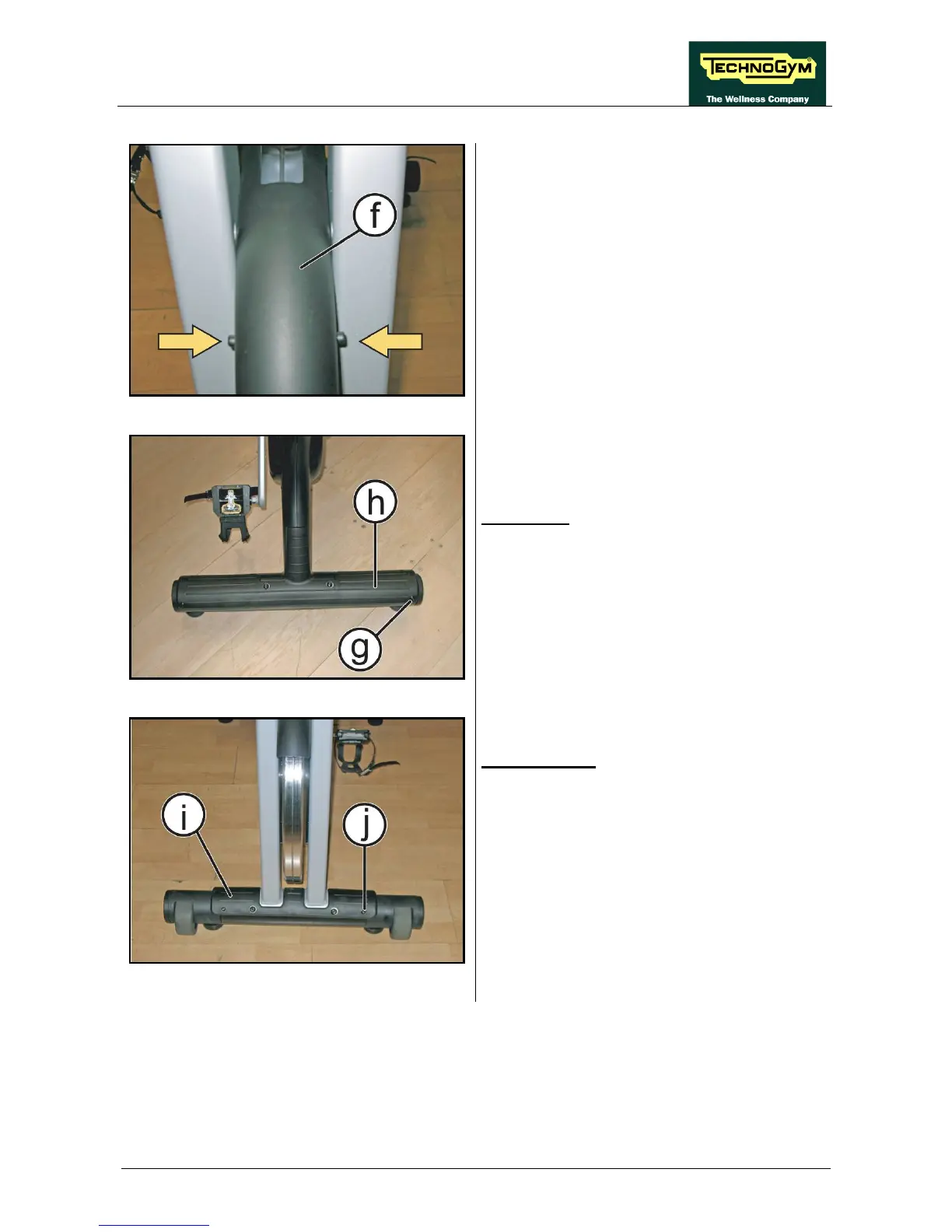

Figure 6.4-4
1. Press on the guard (f)
as indicated by the
arrows, since it can be possible to remove it
from the frame.
Figure 6.4-5
Rear guard:
2. Back off the 4 screws (g)
using a 3mm
hexagonal wrench.
3. Remove the guard (h).
Figure 6.4-6
Anterior guard:
4. Back off the 4 screws (i)
using a 3mm
hexagonal wrench.
5. Remove the guard (j).
To reassemble the guards, carry out the above
steps in reverse order.
