Technogym GROUP CYCLE - Disassembling the Pedal Cage

GROUP CYCLE: Service & Maintenance manual rev. 6.4
Page 6.9
6.5.3 DISASSEMBLING THE PEDAL CAGE

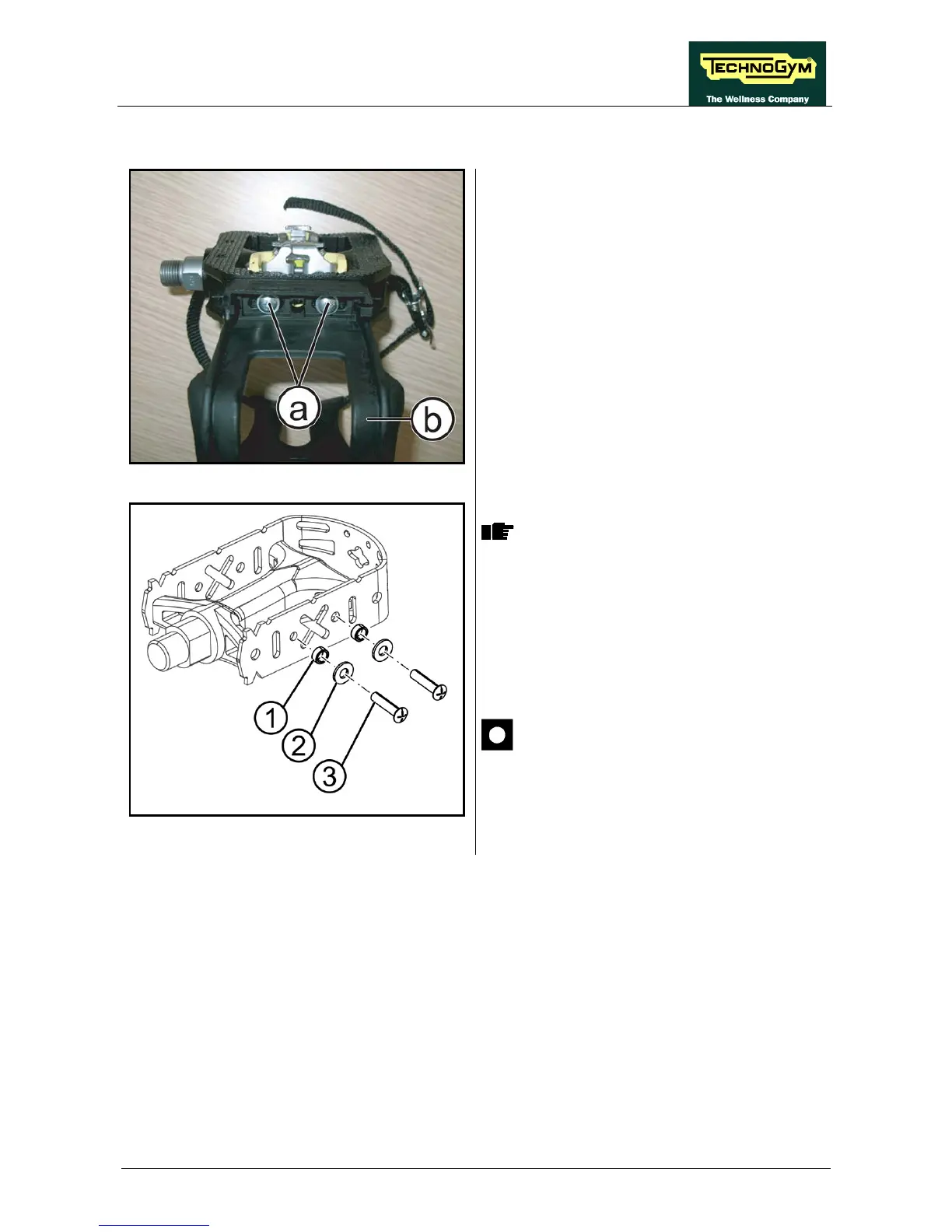

Figure 6.5-4
1. Back off the 2 screws (a)
using a medium
Phillips screwdriver.
2. Remove the pedal cage (b).
Figure 6.5-5
During the reassembly follow the
sequence indicated at the side,
reinserting: first the bushing (1), then
the washer (2) and at the end the screw
(3).
To reassemble the pedal, carry out the above
steps in reverse order.
CAUTION: In case of using the pedal
without its cage, it is necessary to
assemble the screws, washers and
bushings, previously removed as shown
at the side.
