7.3 ADJUSTING THE FLYWHEEL PARALLELISM (BELT
VERSION)

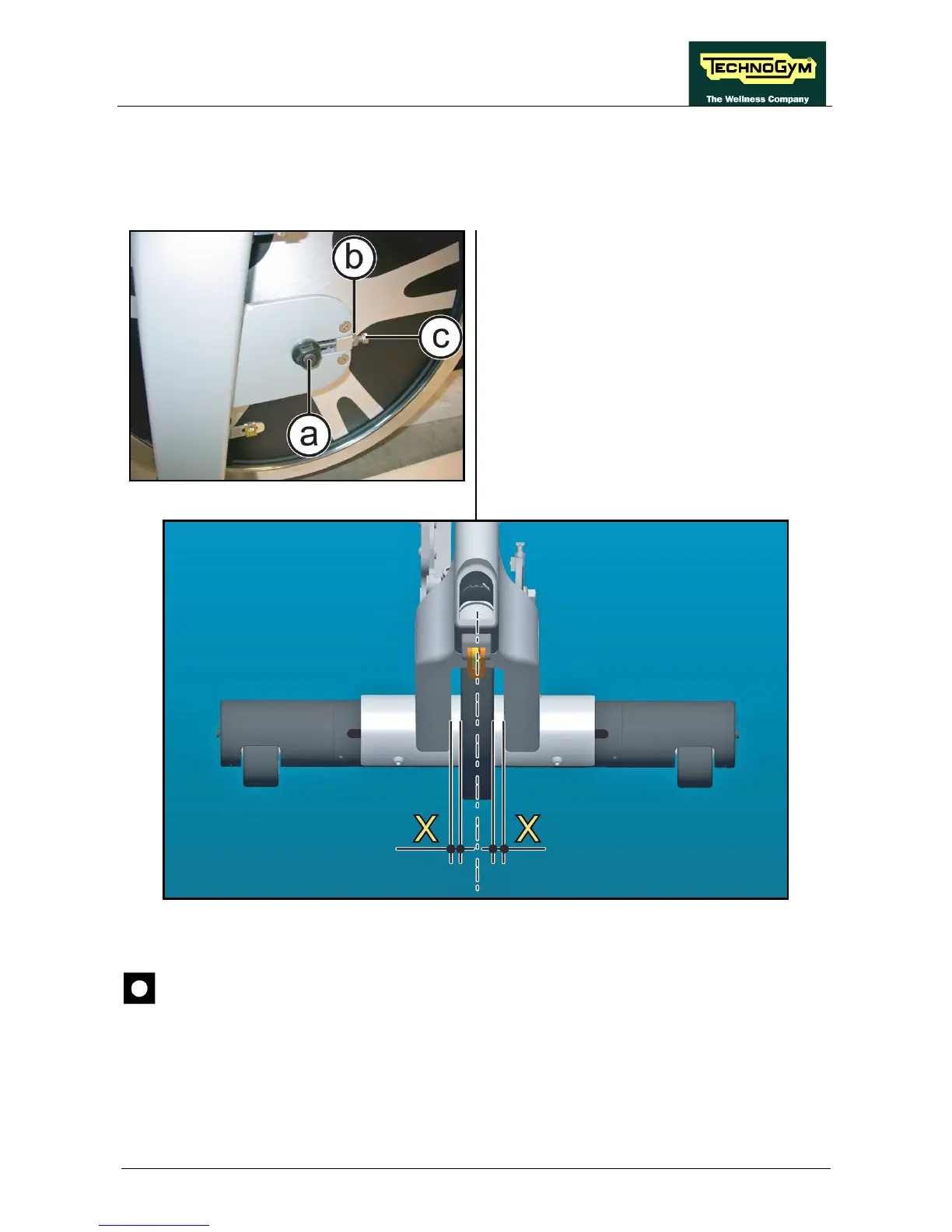

Figure 7.3-1
1. Loosen the nut (a), using a 19mm wrench.
2. Loosen the counter-nut (b) using a 10mm
wrench.
3. Adjust the parallelism of the flywheel
screwing and/or baking off the screw (c)
using a 10mm wrench
Figure 7.3-2
CAUTION: The flywheel must be centred in the fork;
the "X" dimension must be the
same in both positions.
Continued on following page...
