GROUP CYCLE: Service & Maintenance manual rev. 6.4
Page 6.30
6.13.3.2 For sensor group

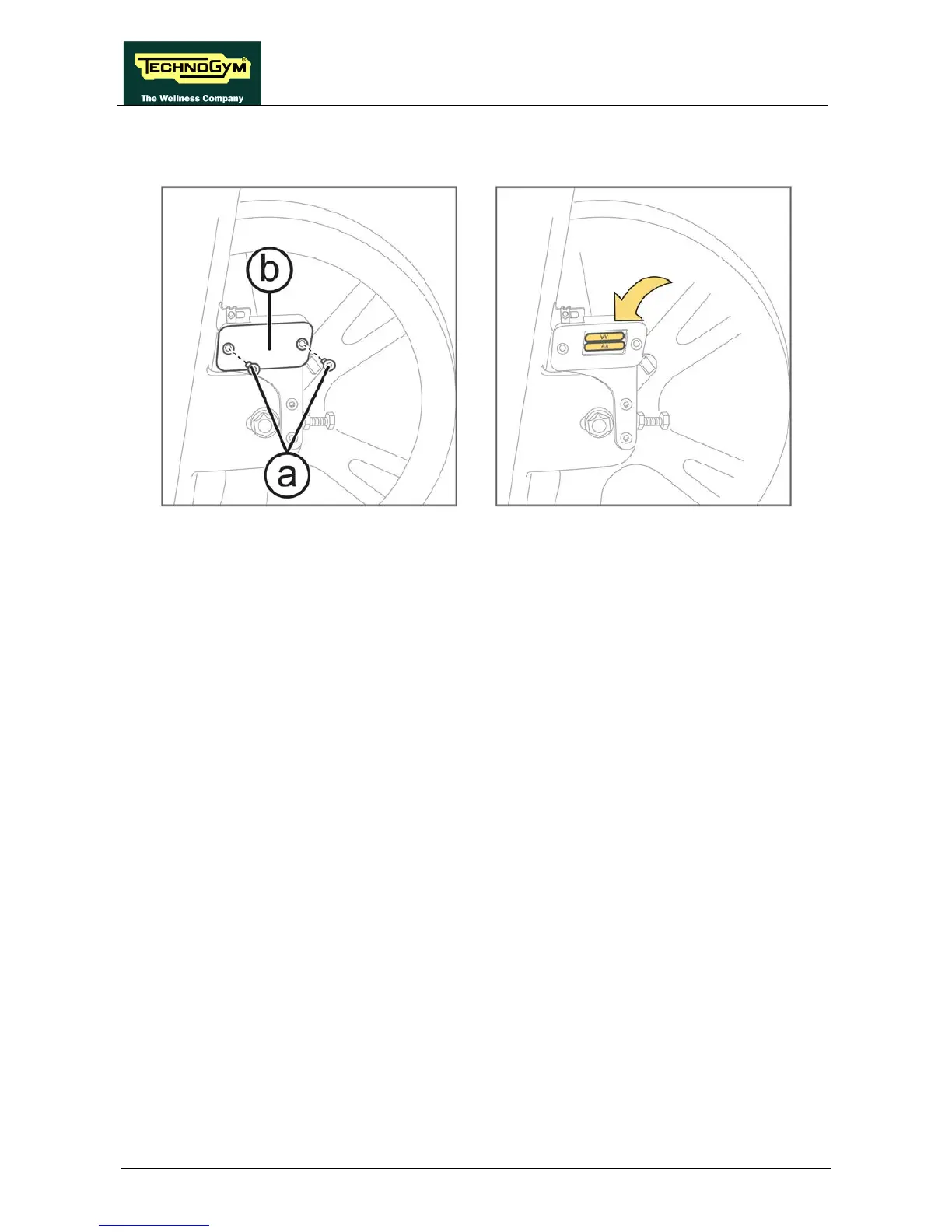

Figure 6.13-7
Carry out the procedure described in paragraph: 6.4“Disassembling ”, fino al punto (3).
1. Back off the 2 screws (a) using a 3mm hexagonal wrench.
2. Remove the cover (b) and replace the batteries if is necessary.
To reassemble the components removed,
carry out the above steps in reverse order.
