7.7. DISASSEMBLING THE EMERGENCY STOP BUTTON

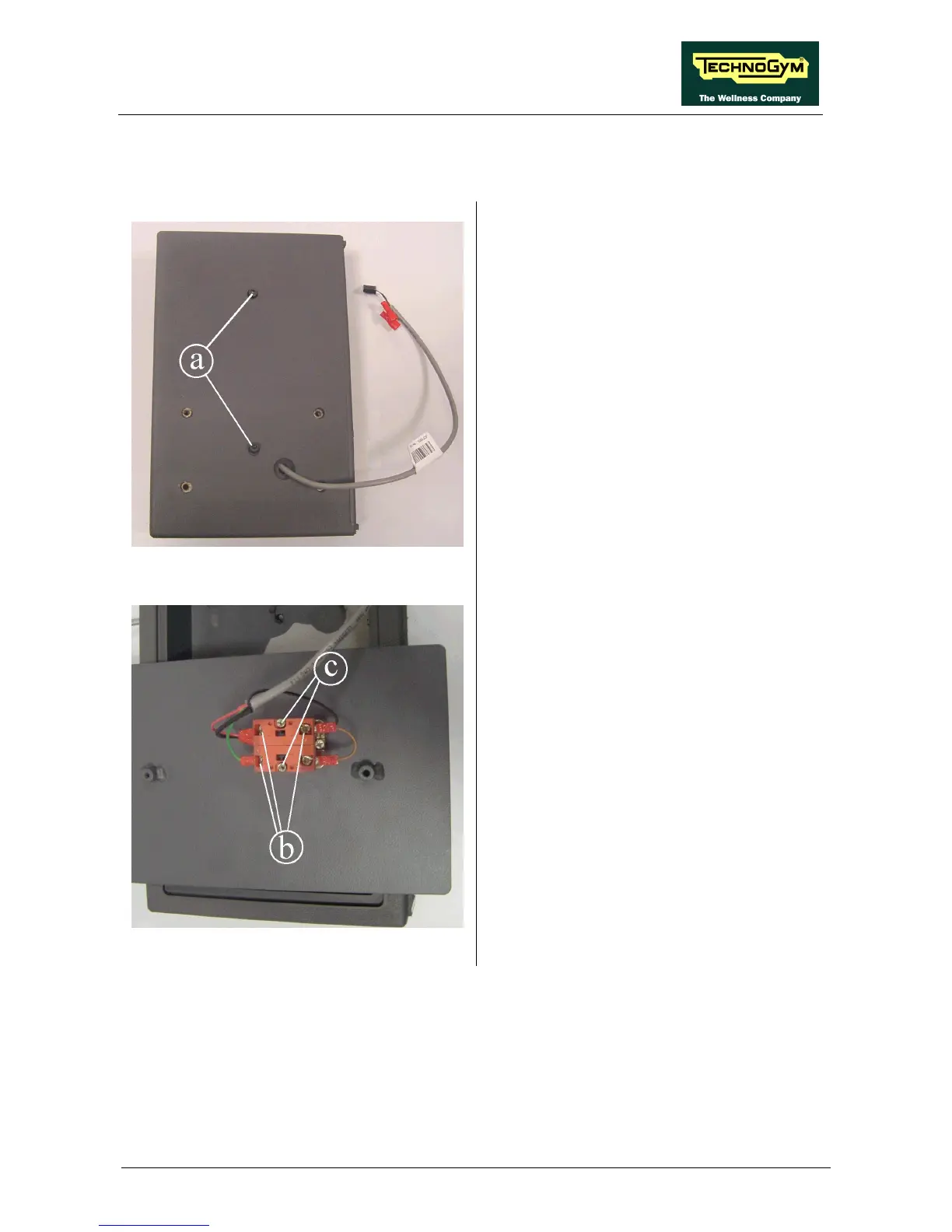

Figure 7.7-1
Carry out the procedure described in paragraph
7.1. “Disassembling the display” up until the
disconnection of the cables and the disassembly
of the right hand side panel which accommodates
the EMERGENCY STOP BUTTON.
With the side panel on a work bench:
1. Back off the 2 screws a using a 4-mm hex T
wrench.
2. With the help of a flat blade screwdriver,
open the cover of the side panel from the
outer housing.
Figure 7.7-2
3. Disconnect the three electrical cables b of the
EMERGENCY STOP BUTTON, using a
medium Philips screwdriver.
4. Back off the 2 screws c which fix the
EMERGENCY STOP BUTTON to the cover
using a medium Philips screwdriver.
To reassemble the EMERGENCY STOP
BUTTON, carry out the above steps in reverse
order.
