RUNRACE : Service & Maintenance Manual - rev. 2.0
Page 2.2
2.5. WIRING DIAGRAMS
Over time, the machine has undergone modifications for component upgrades and improvements. In
certain cases, these modification have entailed changes to the wiring diagram. In the interests of
simplicity, the following paragraphs give the diagrams for the most important versions.

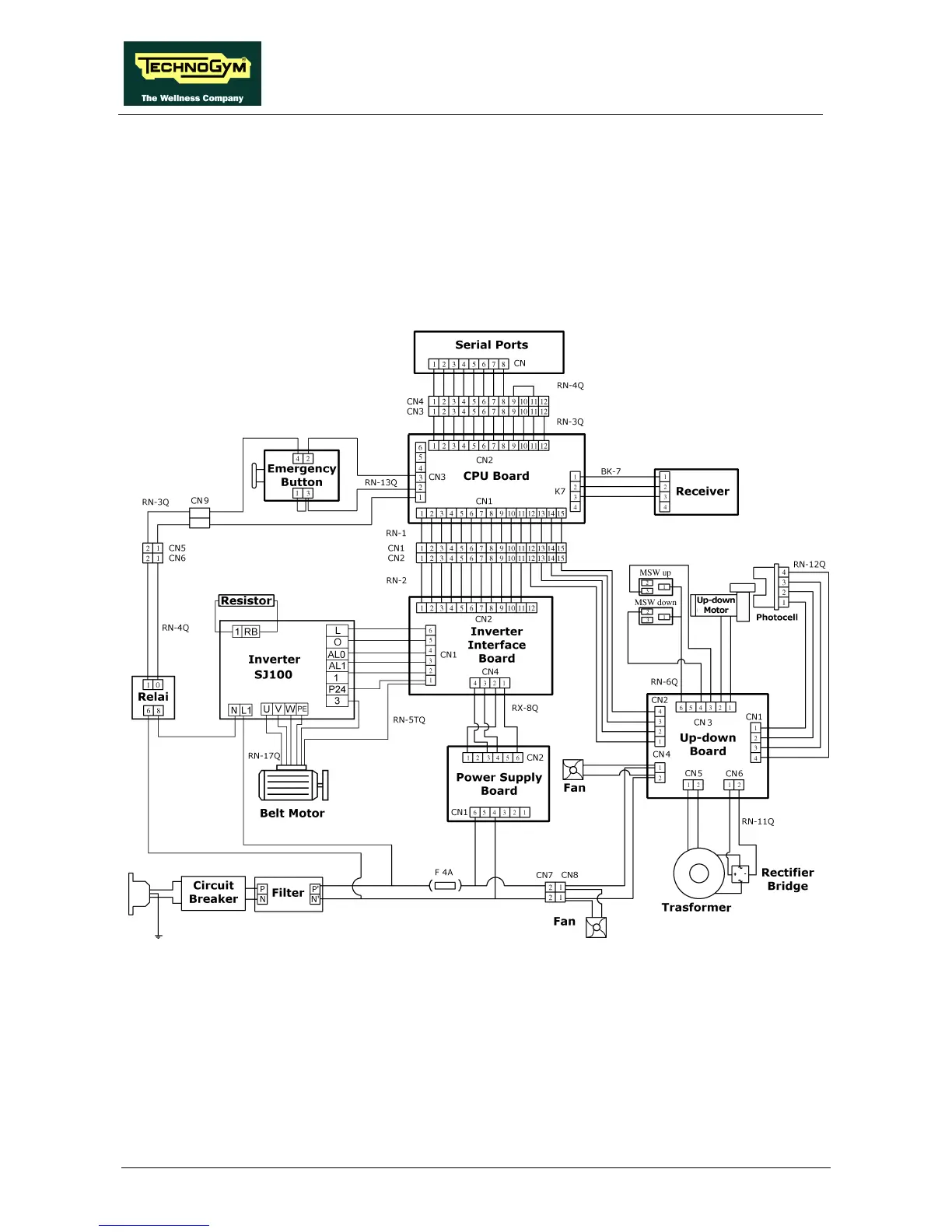

2.5.1. 220 MODEL CONFORM TO IEC 601
Valid from SN. 03000131.
