7.14. DISASSEMBLING THE BRUSH

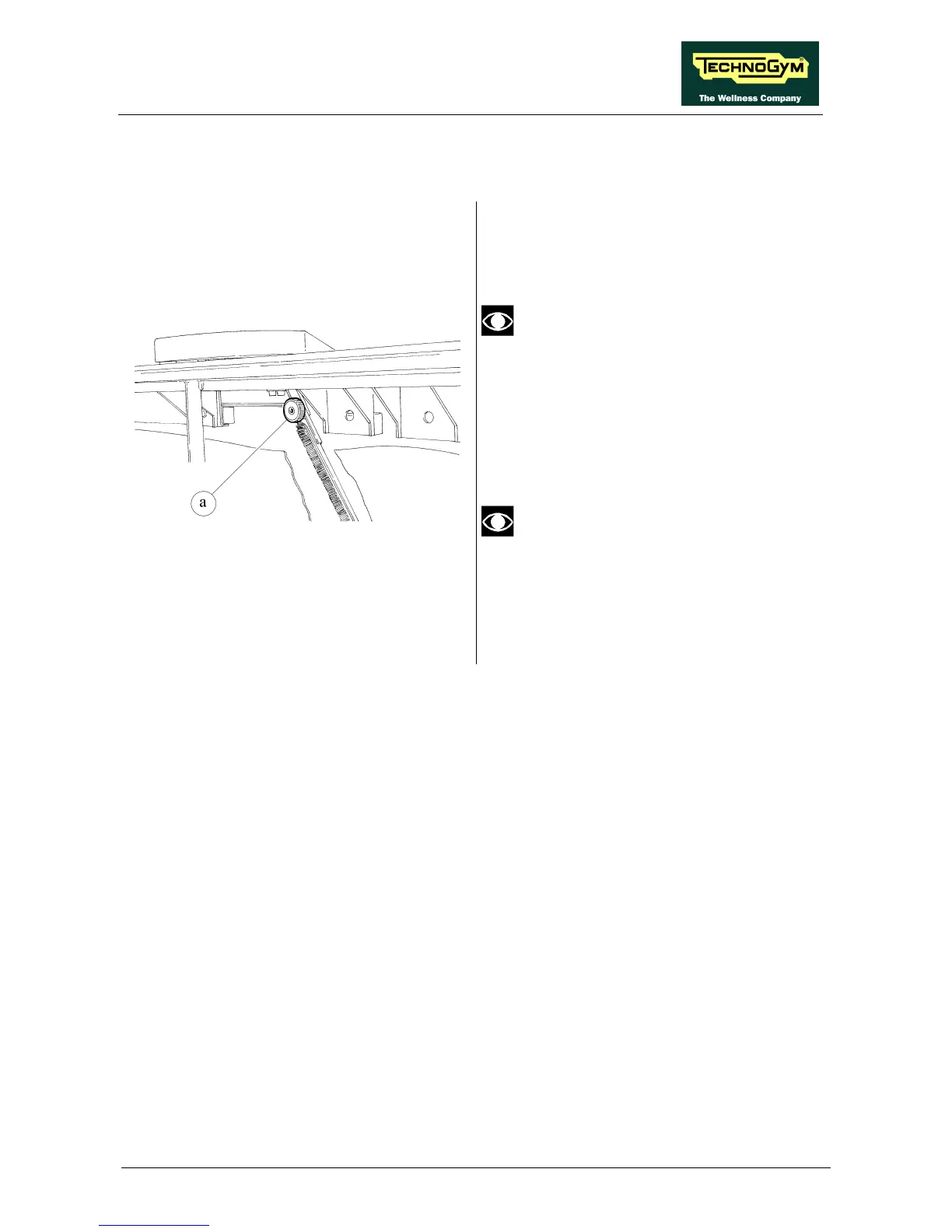

Figure 7.14-1
1. Turn off the machine and unplug the mains
lead from the wall outlet.
2. Overturn the machine on its right side.
If the automatic lubrication system is
installed, ensure that the oil reservoir
cap is securely closed.
3. Slightly shifting the belt, on either end of the
BRUSH, back off the 2 knobs a fixing it to
the frame.
4. Pull out the BRUSH from the side.
If the automatic lubrication system
nozzles are installed, proceed as above to
remove them.
To reassemble the BRUSH, carry out the above
steps in reverse order.
