7.24. DISASSEMBLING THE ELEVATION BARS

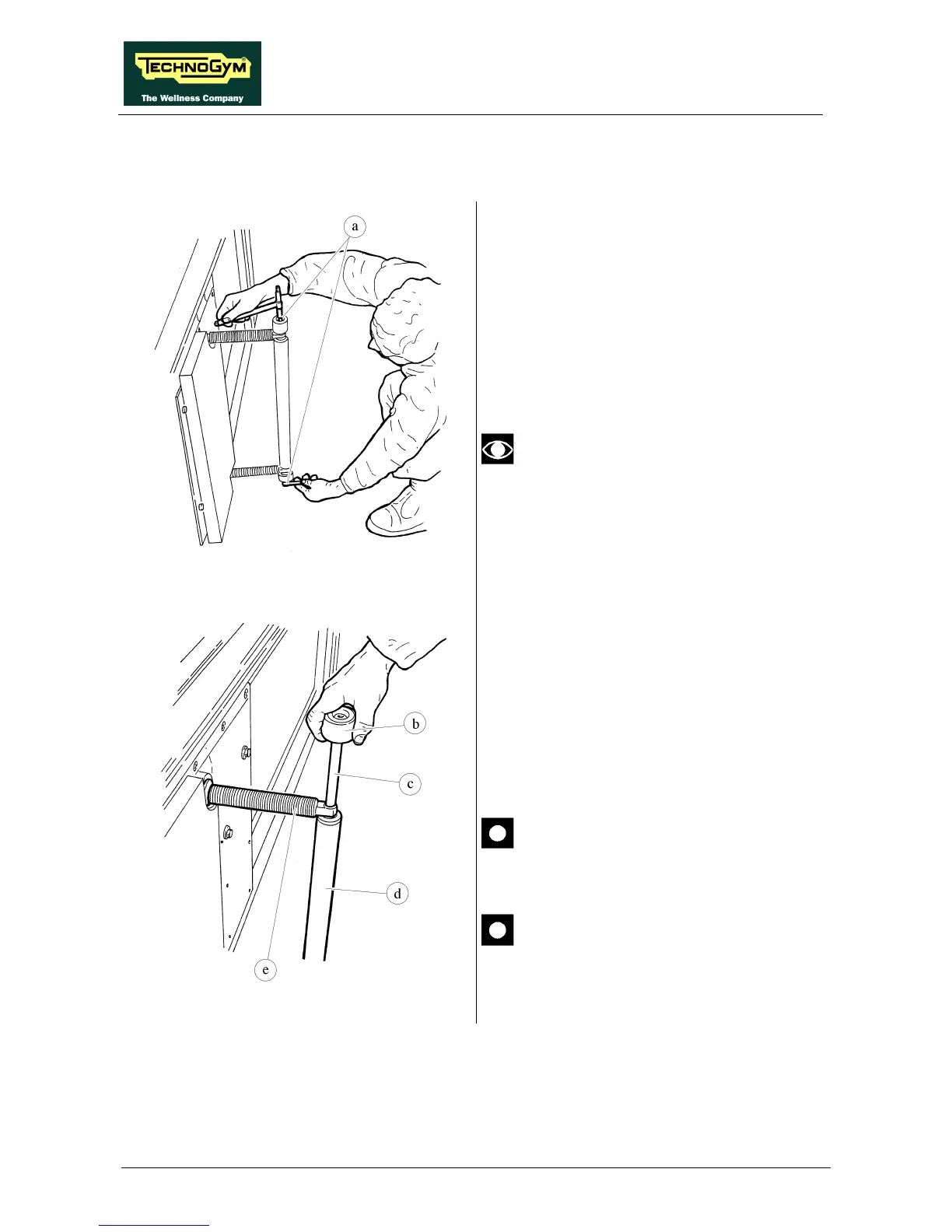

Figure 7.24-1
1. Raise the machine to its maximum incline
position.
2. Carry out the procedures described in
paragraphs 7.8. “Disassembling the motor
guard” and 7.10. “Disassembling the front
plate”.
3. Overturn the machine on its right side.
If the automatic lubrication system is
installed, ensure that the oil reservoir
cap is securely closed.
4. Back off the two wheel fixing screws a using
two 6-mm T wrenches.
Figure 7.24-2
5. Pull out the wheel b.
6. Pull out the wheel shaft c.
7. Remove the spacer d.
8. Manually unscrew the 2 ELEVATION
BARS e to remove them.
To reassemble the ELEVATION BARS, carry
out the above steps in reverse order.
During the reassembly phase, lubricate
the elevation bars with MOLYKOTE
GN PLUS grease.
After completing the procedure, adjust
the alignment of the ELEVATION
BARS as described in paragraph 8.6. .
