Technogym Runrace - Disassembling Shield Grid for Tread Belt Motor and Inverter

RUNRACE : Service & Maintenance Manual - rev. 2.0
Page 7.13
7.11. DISASSEMBLING SHIELD GRID FOR TREAD BELT
MOTOR AND INVERTER

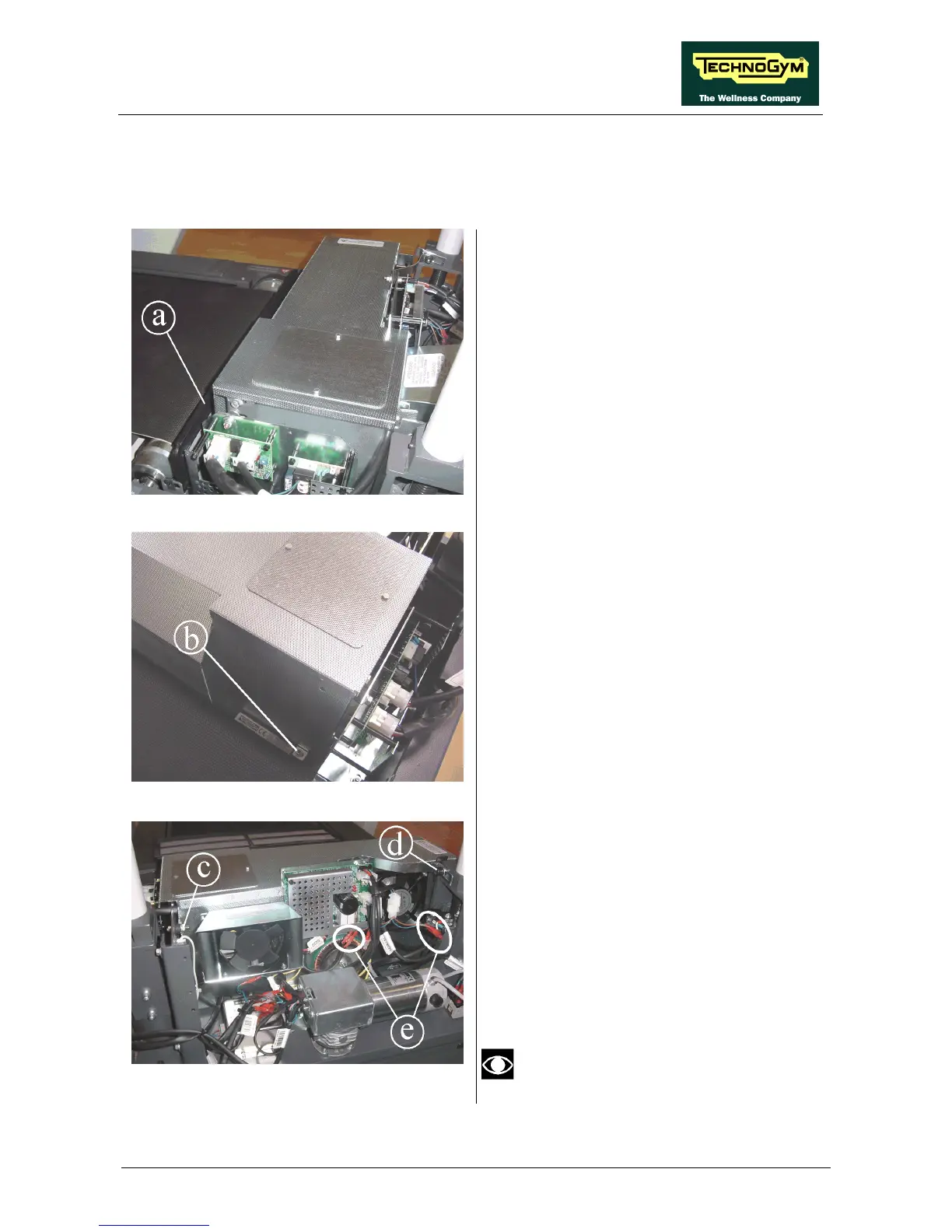

Figure 7.11-1
Carry out the procedure described in paragraph
7.8. “Disassembling the motor guard”.
1. Remove the dust guard a.
Figure 7.11-2
2. Back off the screw b using a medium Phillips
screwdriver, in the rear part of the shield
grid.
Figure 7.11-3
3. Back off the nut c using a 10-mm wrench.
4. Back off the bolt d using an 8-mm Allen T
wrench.
5. Disconnect the 4 fastons e, of the fans power
supply cables.
6. Remove the shield grid pulling it out from
the top.
To reassemble the SHIELD GRID, carry out the
above steps in reverse order.
To reassemble the grid, be careful not to
damage the cables.
