RUNRACE : Service & Maintenance Manual - rev. 2.0
Page 7.23
7.18. DISASSEMBLING THE MOTOR DRIVE-BELT

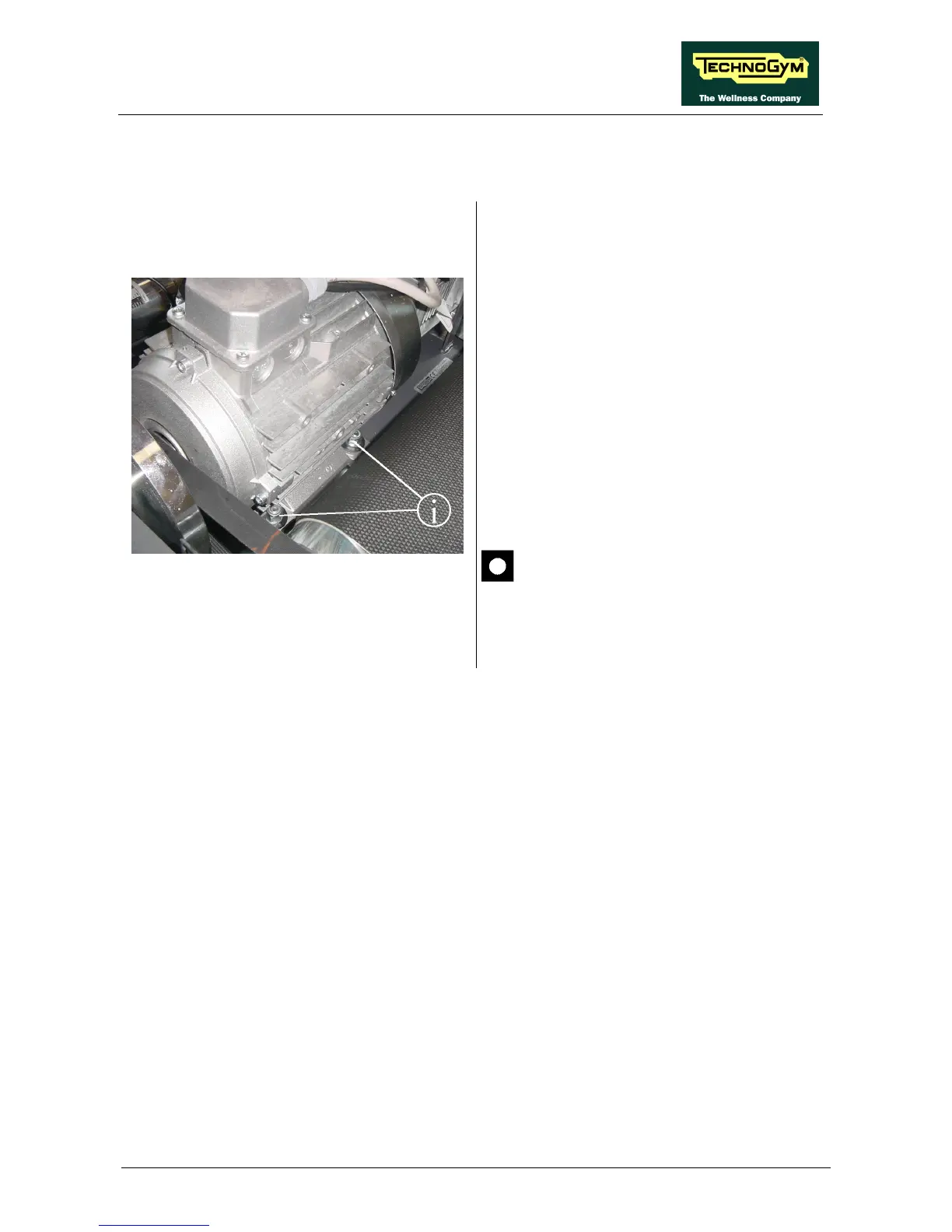

Figure 7.18-1
Carry out the procedures described in paragraphs
7.8. “Disassembling the motor guard” and 7.13.
“Disassembling the motor roller”.
1. Back off the 4 nuts a (2 are concealed by the
motor itself in the figure at left) fixing the
tread-belt motor to the machine frame, using
a 17-mm wrench and holding the screw
underneath in place with a 17-mm wrench.
2. Raise the tread-belt motor by pushing it first
inward and then upward to remove the
MOTOR DRIVE-BELT.
To reassemble the MOTOR DRIVE-BELT, carry
out the above steps in reverse order.
After completing the procedure, adjust
the tension and alignment of the
MOTOR DRIVE-BELT as described in
paragraph 8.4. .
