7.6. DISASSEMBLING THE CARDIO RECEIVER

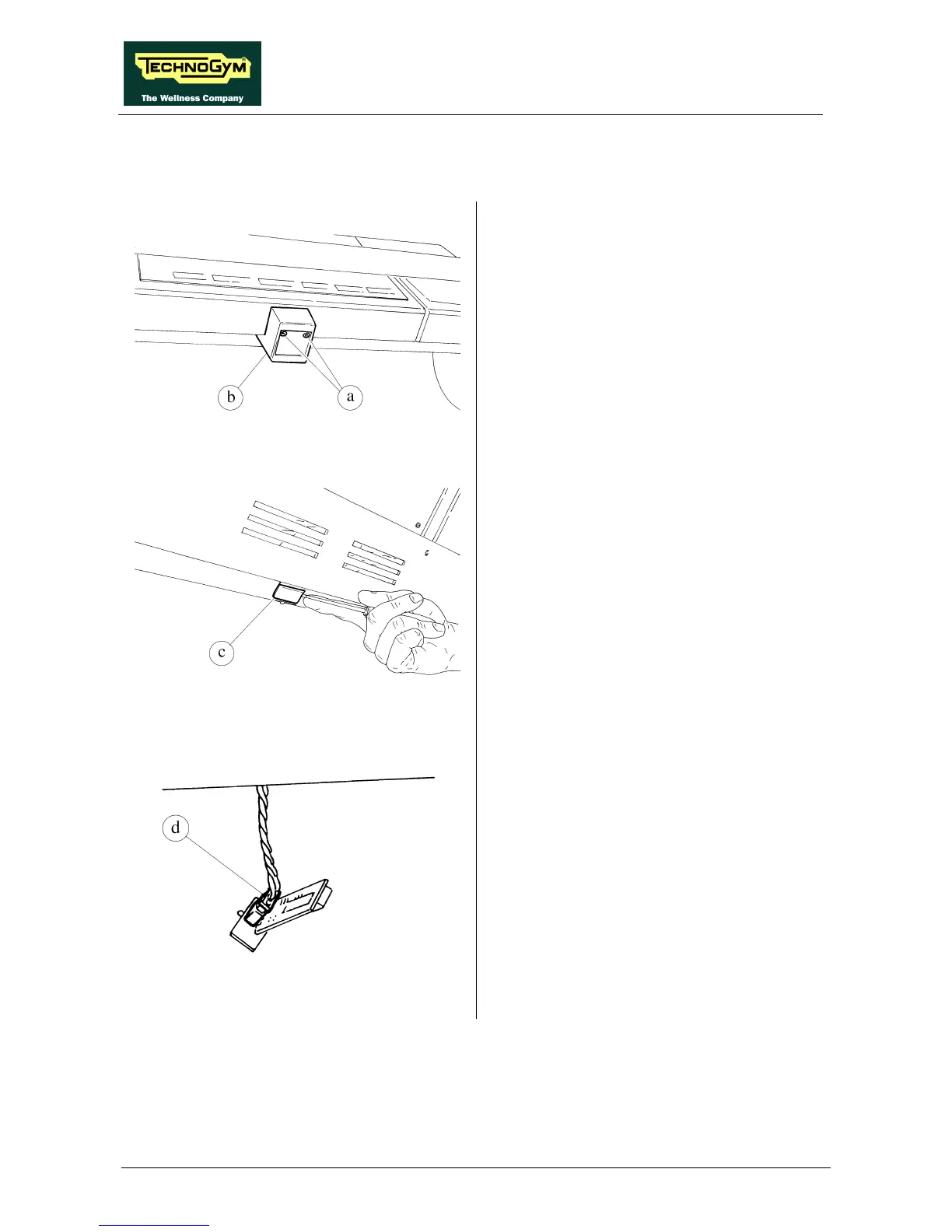

Figure 7.6-1
1. Raise the machine to its maximum incline.
2. Turn off the machine and unplug the mains
lead from the wall outlet.
If the receiver is situated under the display:
3. Detach the sticker.
4. Back off the 2 screws a using a 3-mm hex T
wrench.
5. Open the housing b which contains the
RECEIVER.
Figure 7.6-2
If the receiver is situated inside the display:
6. With the help of a flat blade screwdriver,
remove the housing c which contains the
RECEIVER.
7. Open the housing.
Figure 7.6-3
8. Disconnect connector d of cable BK-7 from
the RECEIVER.
9. Remove the RECEIVER.
To reassemble the RECEIVER, carry out the
above steps in reverse order, placing it between
the 2 foam pads.
