8.7. CALIBRATING THE TREAD BELT SPEED

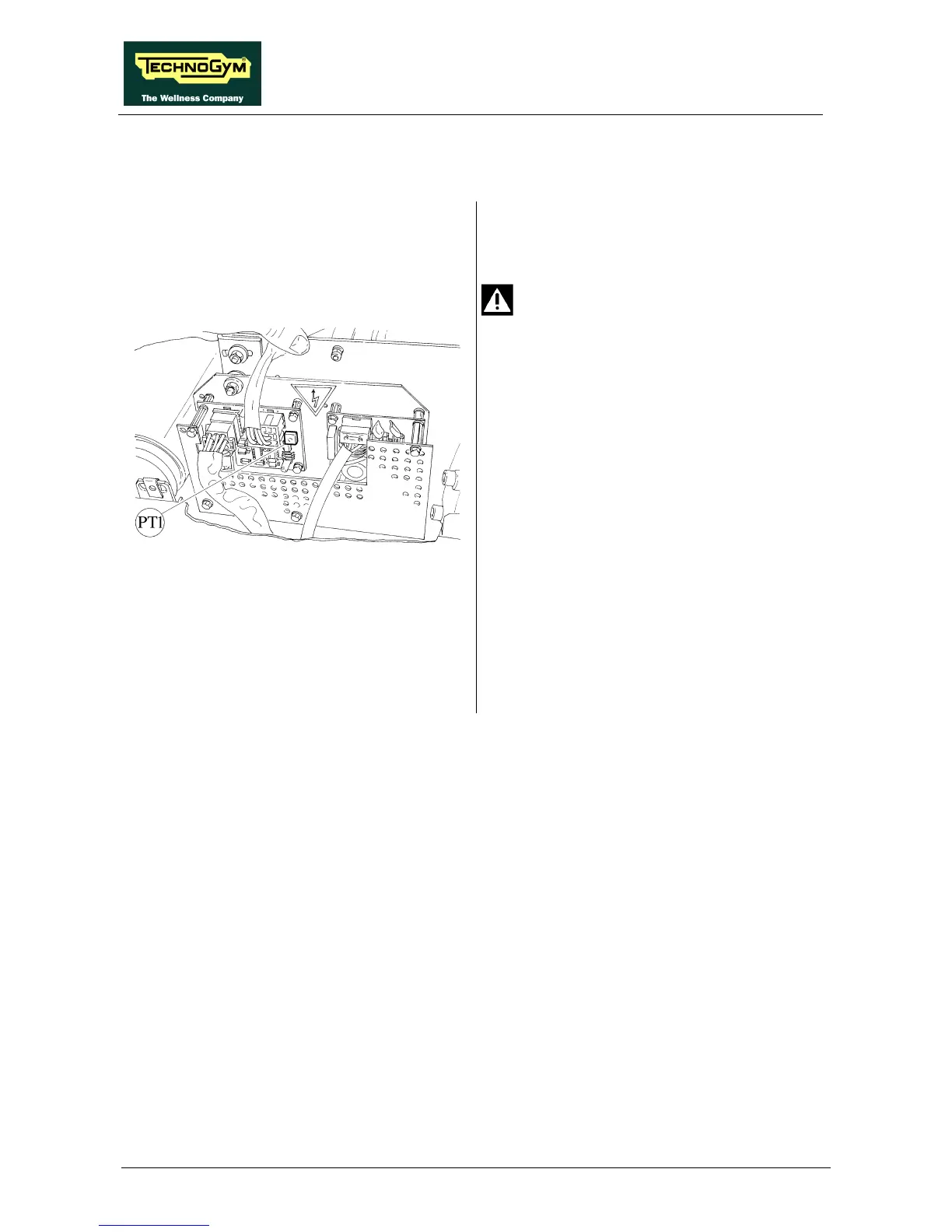

Figure 8.7-1
Carry out the procedure described in paragraph
7.8. “Disassembling the motor guard”.
The operations described below must be
carried out with the machine powered
up; they should be performed
exclusively by a QUALIFIED
TECHNICIAN who must ensure that
there are no unauthorized persons near
the machine.
1. Plug the mains lead into the wall outlet.
2. Turn on the machine.
3. Start the tread belt and set the speed at 12.6
km/.
4. View the belt motor control frequency on the
inverter display.
5. Adjust potentiometer PT1 on the inverter
interface board, using a small flat-blade
screwdriver, until the frequency shown on the
inverter display is 50 Hz.
