7.10. DISASSEMBLING THE FRONT PLATE

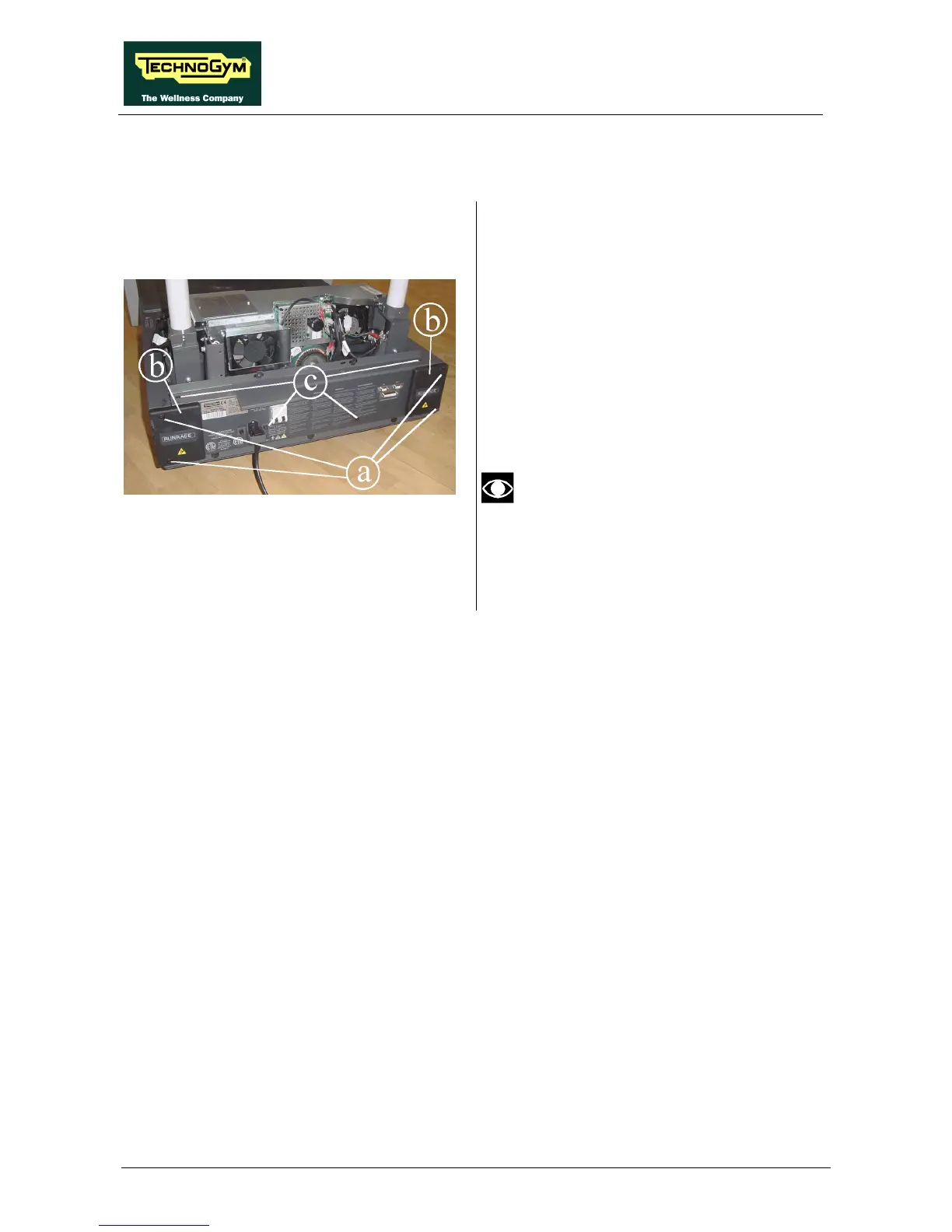

Figure 7.10-1
Carry out the procedure described in paragraph
7.8. “Disassembling the motor guard”.
1. Back off the 4 screws a using a 6-mm hex T
wrench.
2. Remove the 2 side plugs b.
3. Back off the 4 self-tapping screws c using a
large Philips screwdriver.
4. Rotate the FRONT PLATE d downward.
The front plate remains attached to the
frame by means of two steel cables.
To reassemble the FRONT PLATE, carry out the
above steps in reverse order.
