RUNRACE : Service & Maintenance Manual - rev. 2.0
Page 8.3
8.3. CENTERING THE TREAD BELT

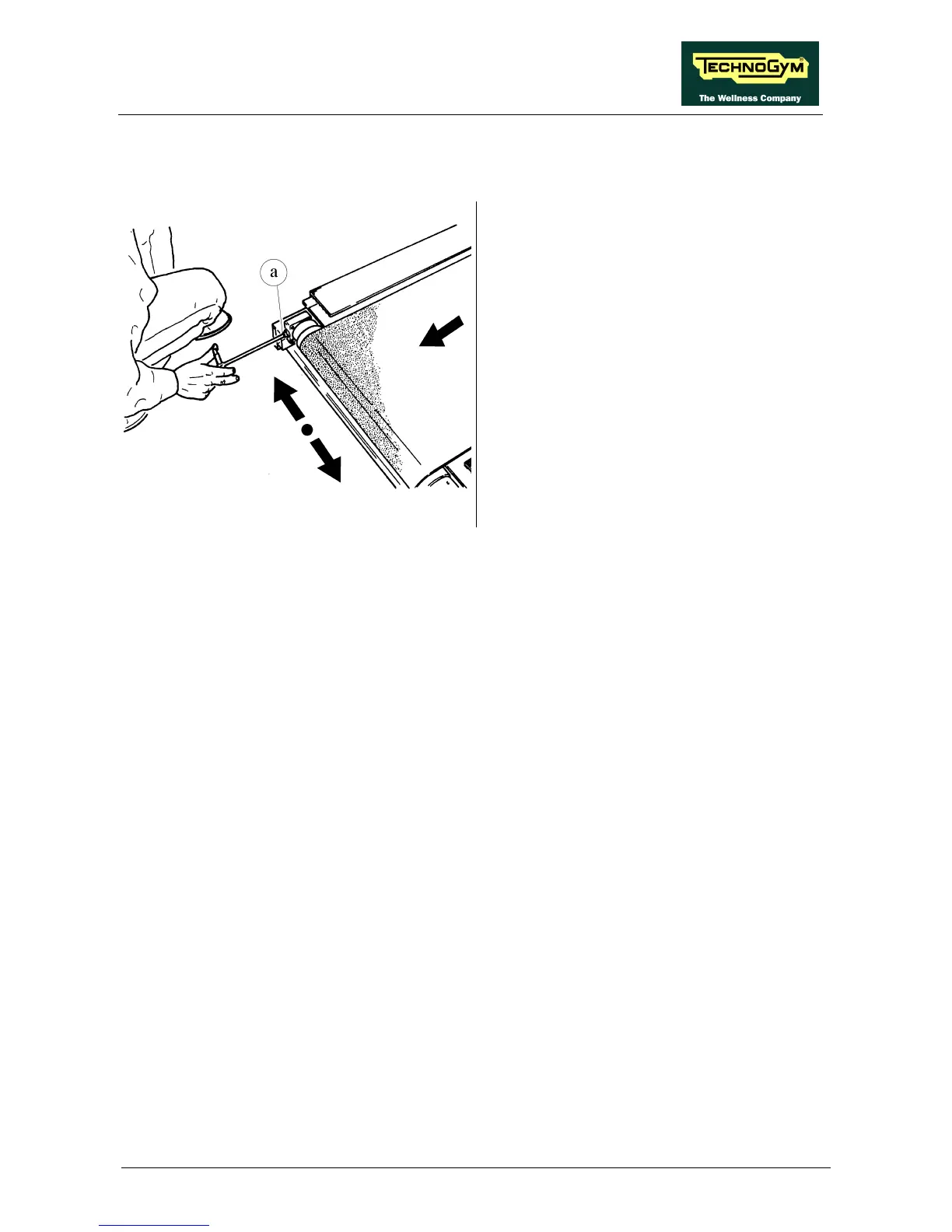

Figure 8.3-1
1. Start the machine at a speed of 10 km/h (6
mph).
2. Observe the movement of the tread belt,
correcting any tendency to shift to the right or
left exclusively by adjusting the left
tensioning screw a. Locking down this screw
favors shifting of the belt to the right and
vice versa.
3. Gradually increase the speed to 16 km/h (10
mph), making any small adjustments which
may be necessary until the tread belt is
perfectly centered.
