RUNRACE : Service & Maintenance Manual - rev. 2.0
Page 7.28
7.22. DISASSEMBLING THE UP-DOWN MOTOR

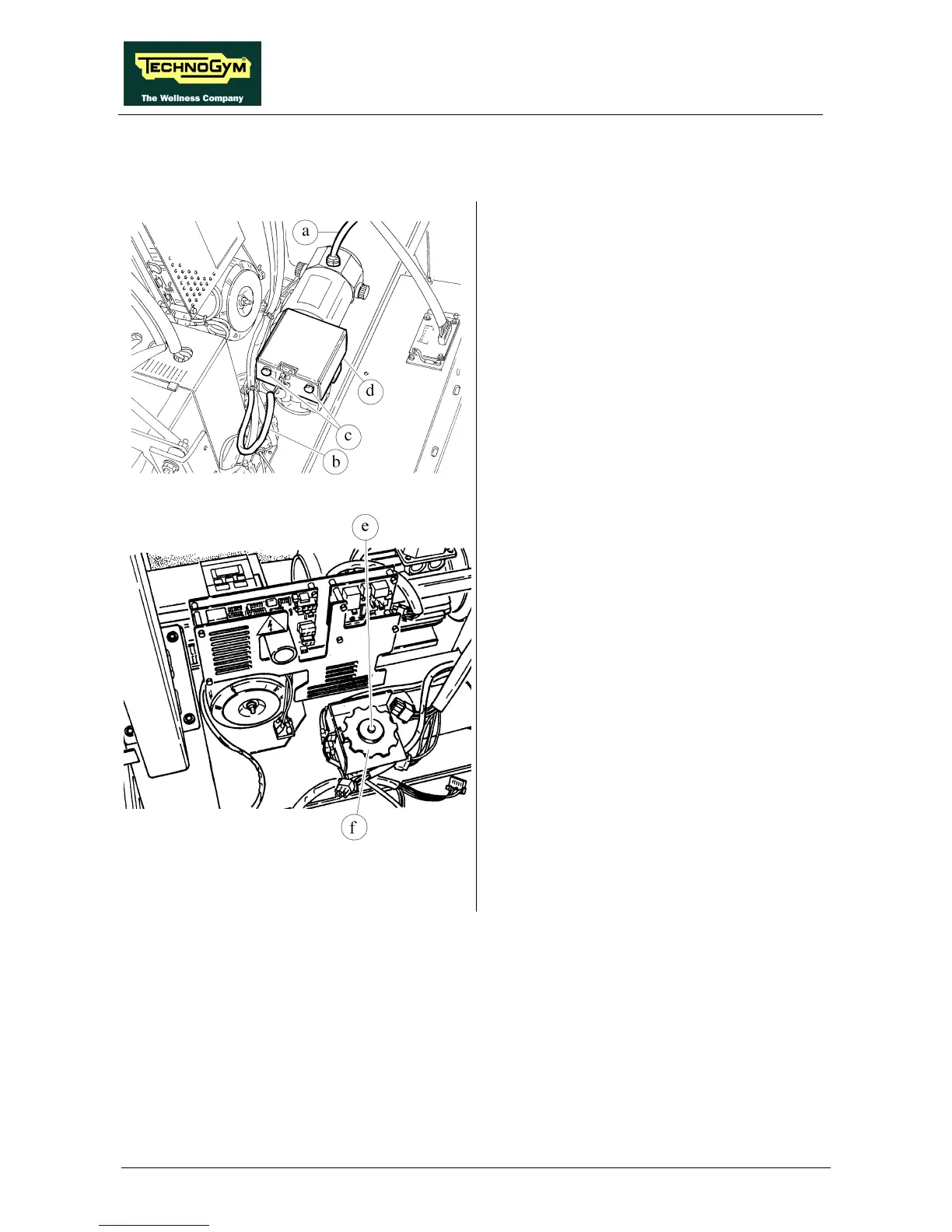

Figure 7.22-1
Carry out the procedure described in paragraph
7.21. “Disassembling the up-down motor belt”
up until the slackening of the belt (step 7).
1. Disconnect the motor supply cable a.
2. Disconnect the photocell cable b.
3. Using a 10-mm wrench, back off the 2 cover
fixing screws c on the protective housing of
the encoder wheel.
4. Open the cover d.
Figure 7.22-2
5. Using a 10-mm wrench, back off screw e.
6. Disassemble the encoder wheel f.
Continued on the following page →
