7.9. DISASSEMBLING THE SIDE GUARDS

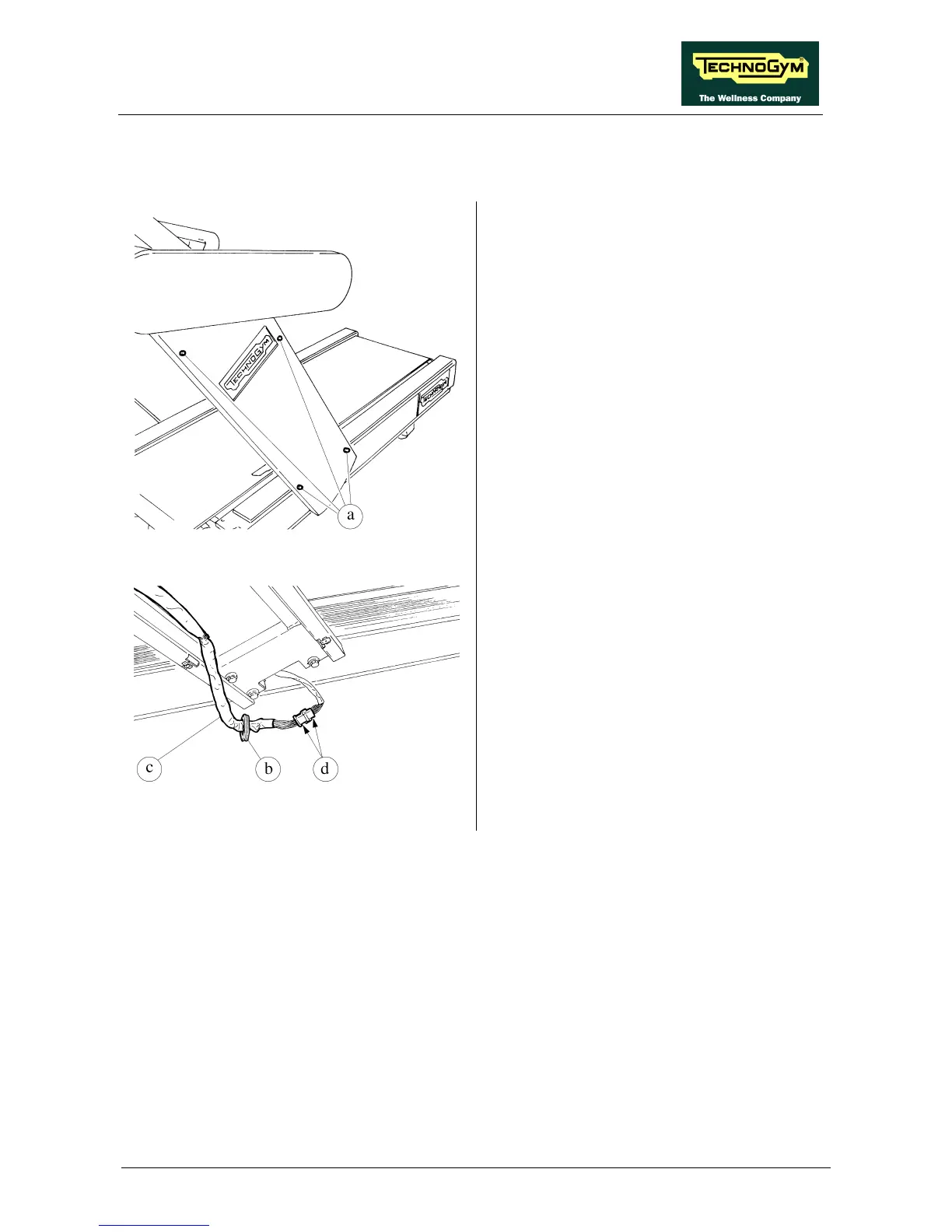

Figure 7.9-1
1. Turn off the machine and unplug the mains
lead from the wall outlet.
For each SIDE GUARD:
2. Back off the 4 screws a using a large Philips
screwdriver.
3. Remove the SIDE GUARD.
Figure 7.9-2
4. Pull out cable clamp b and, pulling on cable
c, expose the free connectors d CN1-CN2 on
the right hand side of the machine, or CN3-
CN4 and CN5-CN6 on the left hand side of
the machine.
To reassemble the SIDE GUARD, carry out the
above steps in reverse order.
