7. DISASSEMBLY OF COMPONENTS
7.1. DISASSEMBLING THE DISPLAY

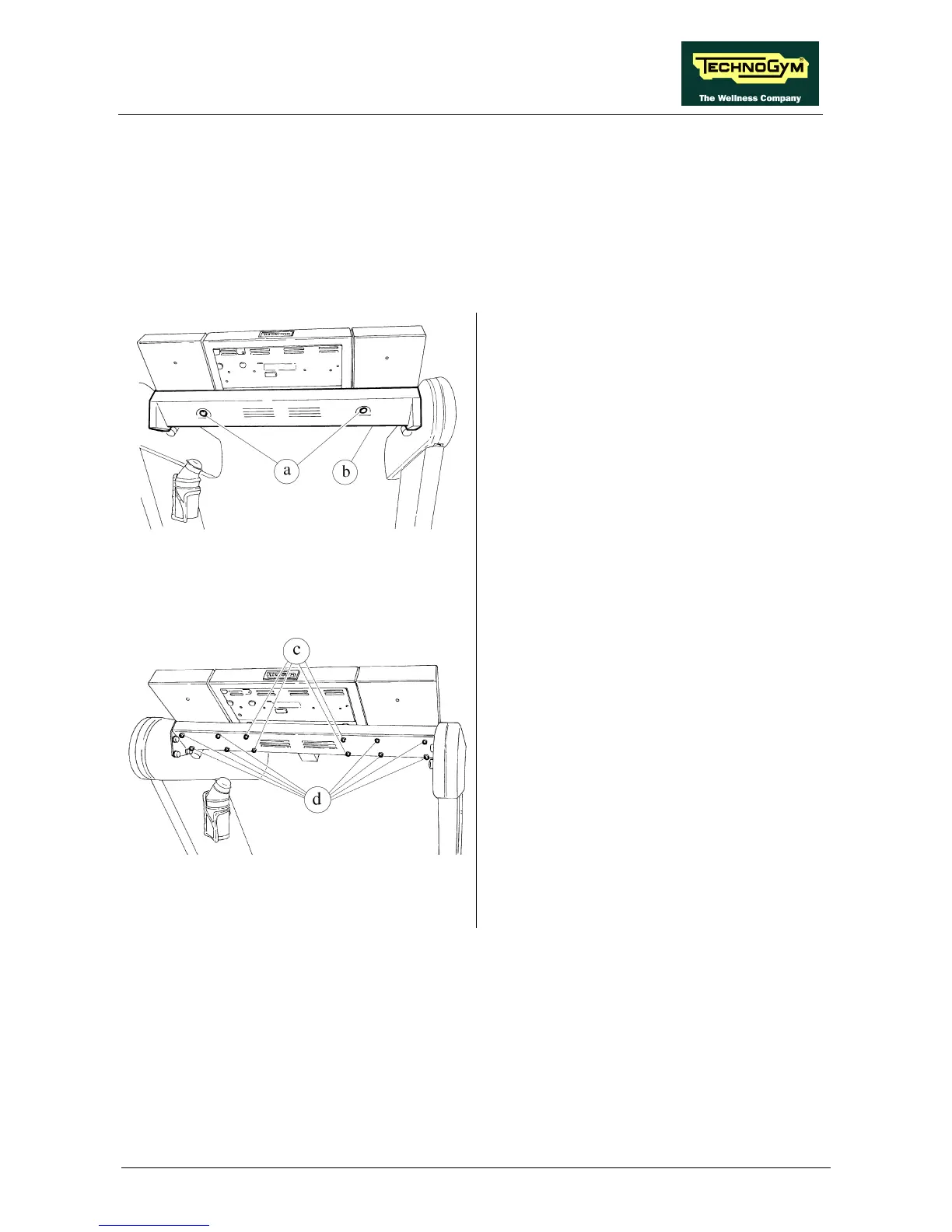

Figure 7.1-1
1. Turn off the machine and unplug the mains
lead from the wall outlet.
2. Back off the 2 screws a.
3. Remove guard b.
Figure 7.1-2
4. Back off the 4 screws c using a 4-mm hex T
wrench.
5. Disconnect the cable connectors.
6. Pull out the DISPLAY.
To disassemble the side panels:
1. Back off the 4 screws d using a 4-mm hex T
wrench.
2. For the right-hand panel, disconnect the
emergency cable connector.
3. Remove the side panel.
To reassemble the DISPLAY, carry out the
above steps in reverse order.
