RUNRACE : Service & Maintenance Manual - rev. 2.0
Page 7.15

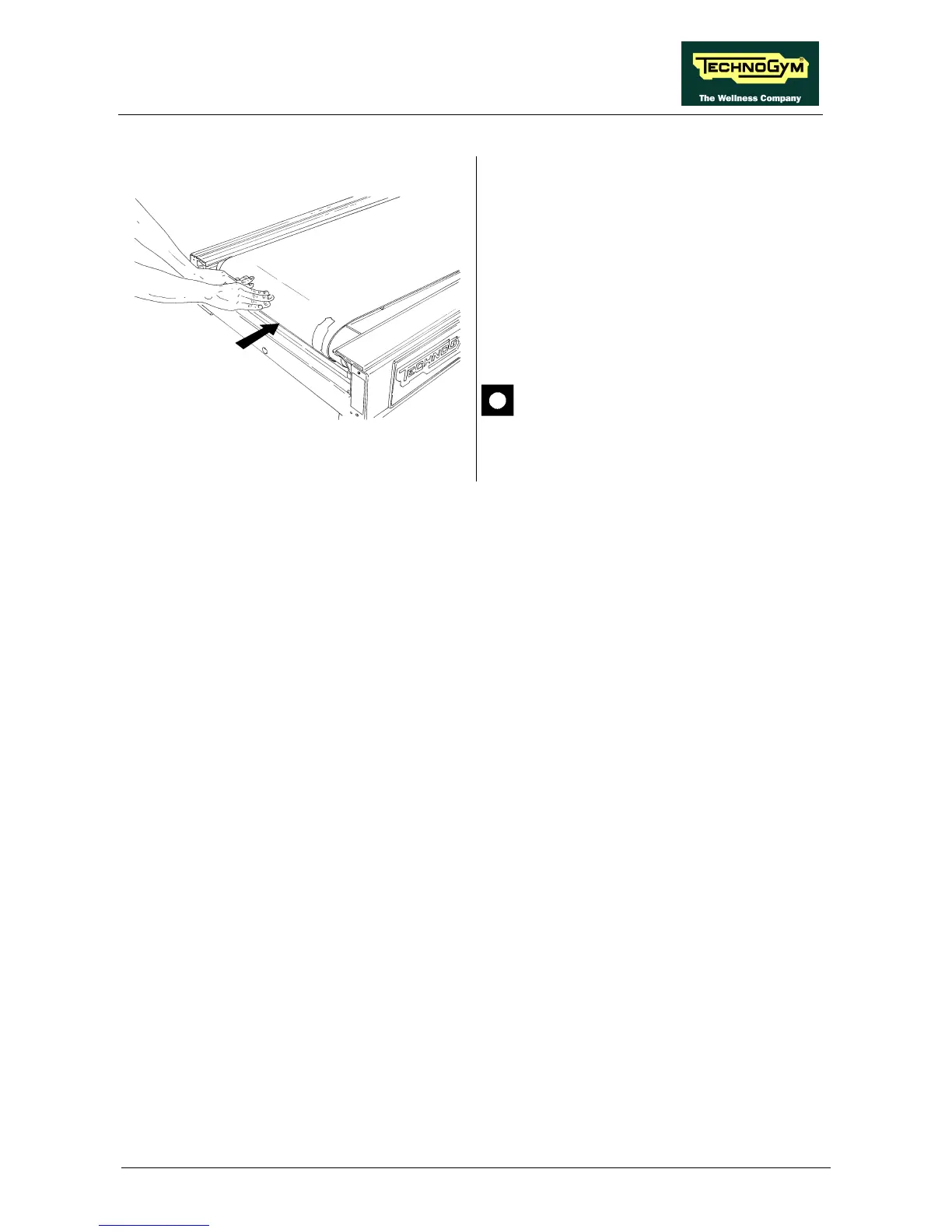

Figure 7.12-4
7. Push the REAR ROLLER forward against
the running track. With the rear screw
removed, there will be enough space to move
REAR ROLLER forward until it comes out
of its guide and drops onto the belt.
8. Pull out the REAR ROLLER.
To reassemble the REAR ROLLER, carry out the
above steps in reverse order.
After completing the procedure, center
the belt and adjust its tension as
instructed in 8.2. and 8.3. .
