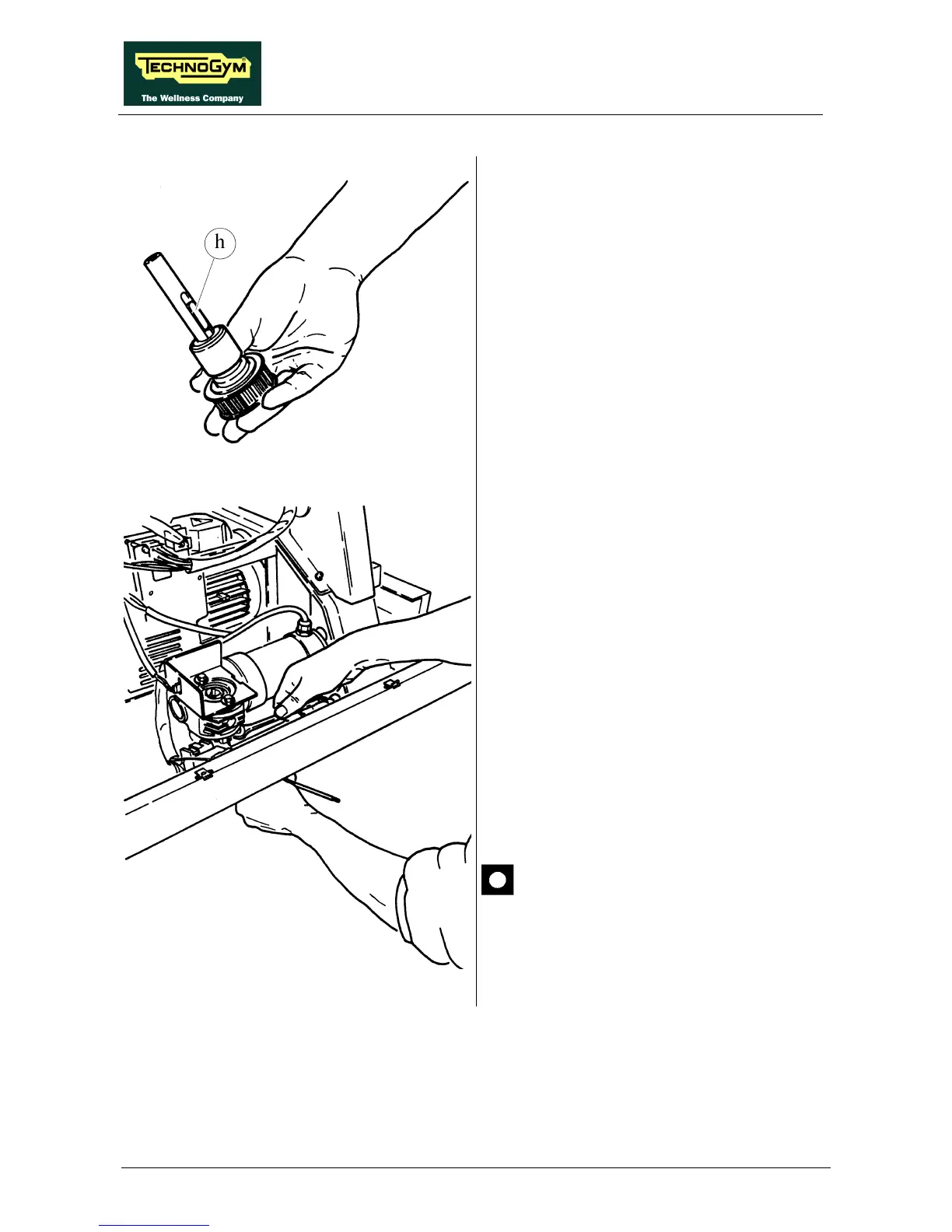

Figure 7.22-5
9. Recover the tab h.
Figure 7.22-6
10. Disassemble the protective housing of the
encoder wheel, using the tool appropriate for
the motor model in question:
• “BONFIGLIOLI” motor: 10-mm wrench;
• “SITI” motor: 8-mm wrench.
11. Back off the 4 fixing screws of the UP-
DOWN MOTOR using a 4-mm hex T
wrench and holding the nut in place with a
10-mm wrench.
12. Remove the UP-DOWN MOTOR.
To reassemble the UP-DOWN MOTOR, carry
out the above steps in reverse order.
After completing the procedure, adjust
the tension of the up-down motor belt as
described in paragraph 8.5. .
