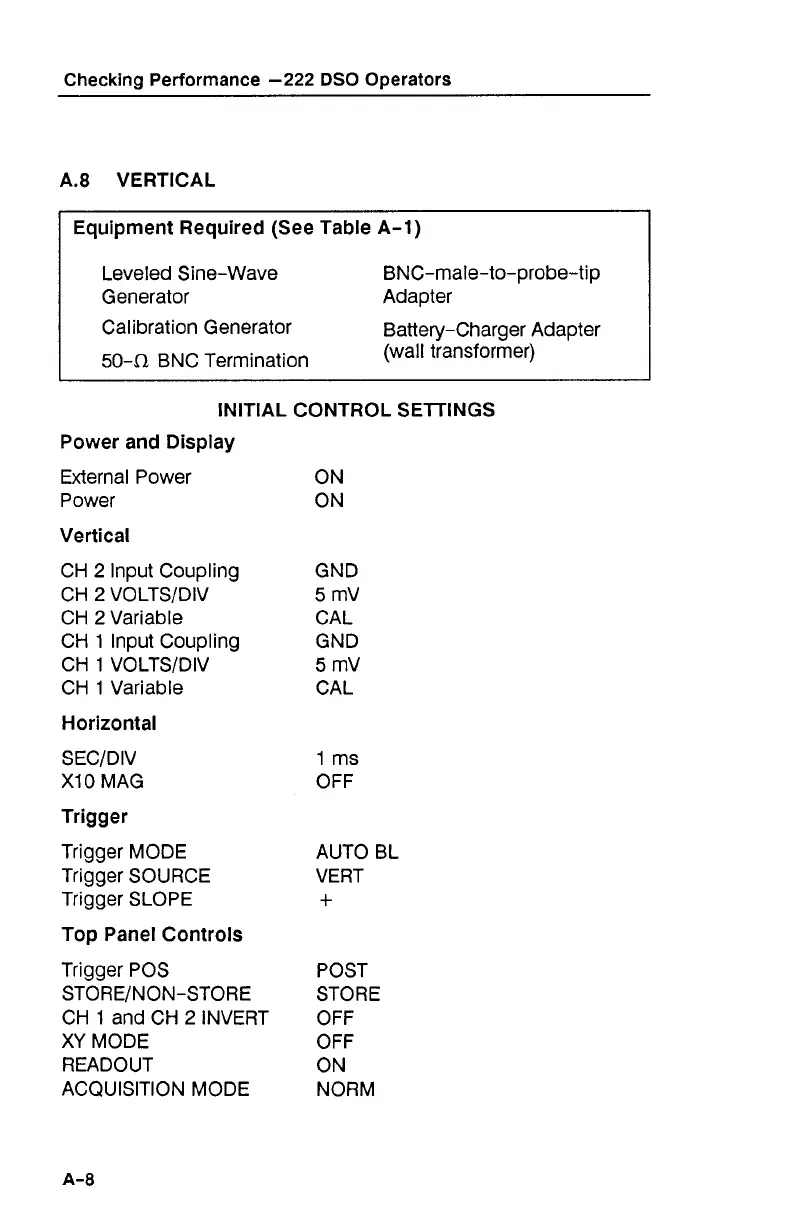

Checking Performance -222 DSO Operators
A.8 VERTICAL
Equipment Required (See Table A-1)
Leveled Sine-Wave BNC-male-to-probe-tip
Generator
Adapter
Calibration Generator Battery-Charger Adapter
504 BNC Termination
(wall transformer)
INITIAL CONTROL SElTINGS
Power and Display
External Power ON
Power ON
Vertical
CH 2 Input Coupling GND
CH
2 VOLTSIDIV 5 mV
CH
2 Variable C AL
CH
1 Input Coupling GND
CH
1 VOLTSIDIV 5 mV
CH
1 Variable CAL
Horizontal
SECIDIV
XI0 MAG
1 ms
OFF
Trigger
Trigger MODE AUTO BL
Trigger SOURCE VERT
Trigger SLOPE
+
Top Panel Controls
Trigger POS POST
STOREINON-STORE STORE
CH
1 and CH 2 INVERT
OFF
XY MODE OFF
READOUT ON
ACQUISITION MODE NORM
