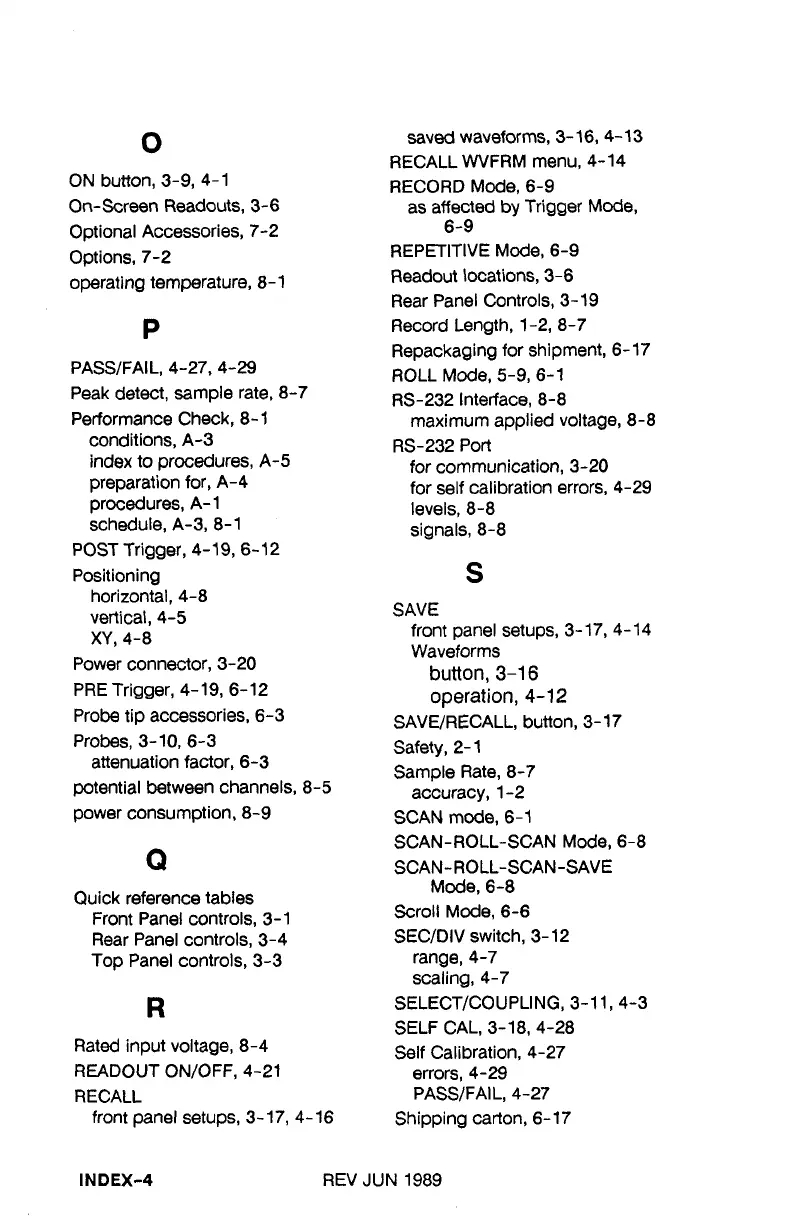

ON button, 3-9,4-1
On-Screen Readouts, 3-6
Optional Accessories, 7-2
Options, 7-2
operating temperature, 8-1
PASSIFAIL, 4-27,4-29
Peak detect, sample rate, 8-7
Performance Check, 8-1
conditions, A-3
index to procedures, A-5
preparation for, A-4
procedures, A-1
schedule, A-3, 8-1
POST Trigger, 4-19,6-12
Positioning
horizontal, 4-8
vertical, 4-5
XY,
4-8
Power connector, 3-20
PRE Trigger, 4-19, 6-12
Probe tip accessories, 6-3
Probes, 3-10,6-3
attenuation factor, 6-3
potential between channels, 8-5
power consumption, 8-9
Quick reference tables
Front Panel controls, 3-1
Rear Panel controls, 3-4
Top Panel controls, 3-3
Rated input voltage, 8-4
READOUT ONJOFF, 4-21
RECALL
front panel setups, 3-17, 4-16
saved waveforms, 3-16, 4-13
RECALL
WVFRM menu, 4-14
RECORD Mode, 6-9
as affected by Trigger Mode,
6-9
REPETITIVE Mode, 6-9
Readout locations, 3-6
Rear Panel Controls, 3-19
Record Length, 1-2, 8-7
Repackaging for shipment, 6-17
ROLL Mode,
5-9,6-1
RS-232 Interface, 8-8
maximum applied voltage, 8-8
RS-232 Port
for communication, 3-20
for self calibration errors, 4-29
levels, 8-8
signals, 8-8
SAVE
front panel setups, 3-17, 4-14
Waveforms
button,
3-1
6
operation,
4-1
2
SAVURECALL, button, 3-17
Safety,
2-
1
Sample Rate, 8-7
accuracy,
1-2
SCAN mode, 6-1
SCAN-ROLL-SCAN Mode, 6-8
SCAN-ROLL-SCAN-SAVE
Mode, 6-8
Scroll Mode, 6-6
SECJDIV switch, 3-12
range, 4-7
scaling, 4-7
SELECT/COUPLING, 3-1 1,4-3
SELF CAL, 3-18,4-28
Self Calibration, 4-27
errors, 4-29
PASS/FAI
L,
4-27
Shipping carton, 6-17
INDEX-4
REV JUN 1989
