Tektronix AWG7000B Series

Troubleshooting

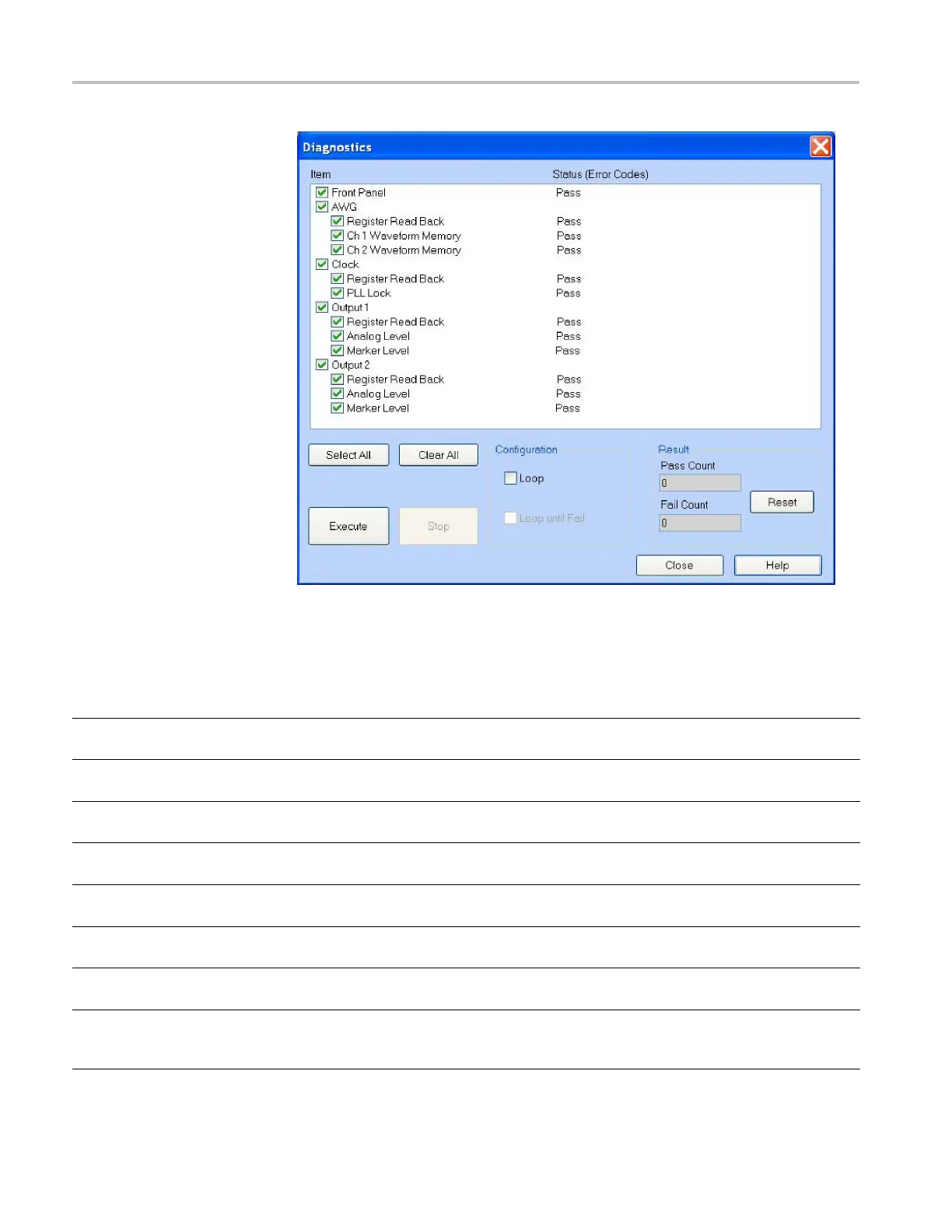

Figure 4-29: Diagnostics dialog box
Table 4-6: Diagnostics error codes
Error code Error log message
Possible defect
on board Note
120000000
HwDiagAwgRegister AwgController address_0x21
register diag. Fail expected data=xxxx actual data=xxxx
AWG12G AWG12G: U1000
120000001
HwDiagAwgRegister AwgController address_0x23
register diag. Fail expected data=xxxx actual data=xxxx
AWG12G AWG12G: U1000
120000002
HwDiagAwgRegister AwgController address_0x30
register diag. Fail expected data=xxxx actual data=xxxx
AWG12G AWG12G: U1000
120000003
HwDiagAwgRegister AwgController address_0x40
register diag. Fail expected data=xxxx actual data=xxxx
AWG12G AWG12G: U1000
120000004
HwDiagAwgRegister AwgController address_0x41
register diag. Fail expected data=xxxx actual data=xxxx
AWG12G AWG12G: U1000
120000005
HwDiagAwgRegister AwgController address_0x42
register diag. Fail expected data=xxxx actual data=xxxx
AWG12G AWG12G: U1000
120000006
HwDiagAwgRegister AwgController address_0x50
register diag. Fail expected data=xxxx actual data=xxxx
AWG12G AWG12G: U1000
120000007
HwDiagAwgRegister Ch1 MemoryController-N
Communication Fail expected data=xxxx actual
data=xxxx -N:PLD no
AWG12G:
U1000
N=0 -> U400PA N=1 -> U400QA
N=2 -> U400RA N =3 -> U400SA
N=4 -> U400TA
