Removal and Installation Procedures

3. Use a 5/16 inch t

orque wrench to remove the 14 SMA cables from the relay

units.

4. Disconnect th

e four cables from the relay units.

5. Remove the 10 screws securing the relay unit to the chassis.

6. Lift the relay unit away from the chassis.

Installati

on. To install, reverse this procedure. (See Figure 4-23.)

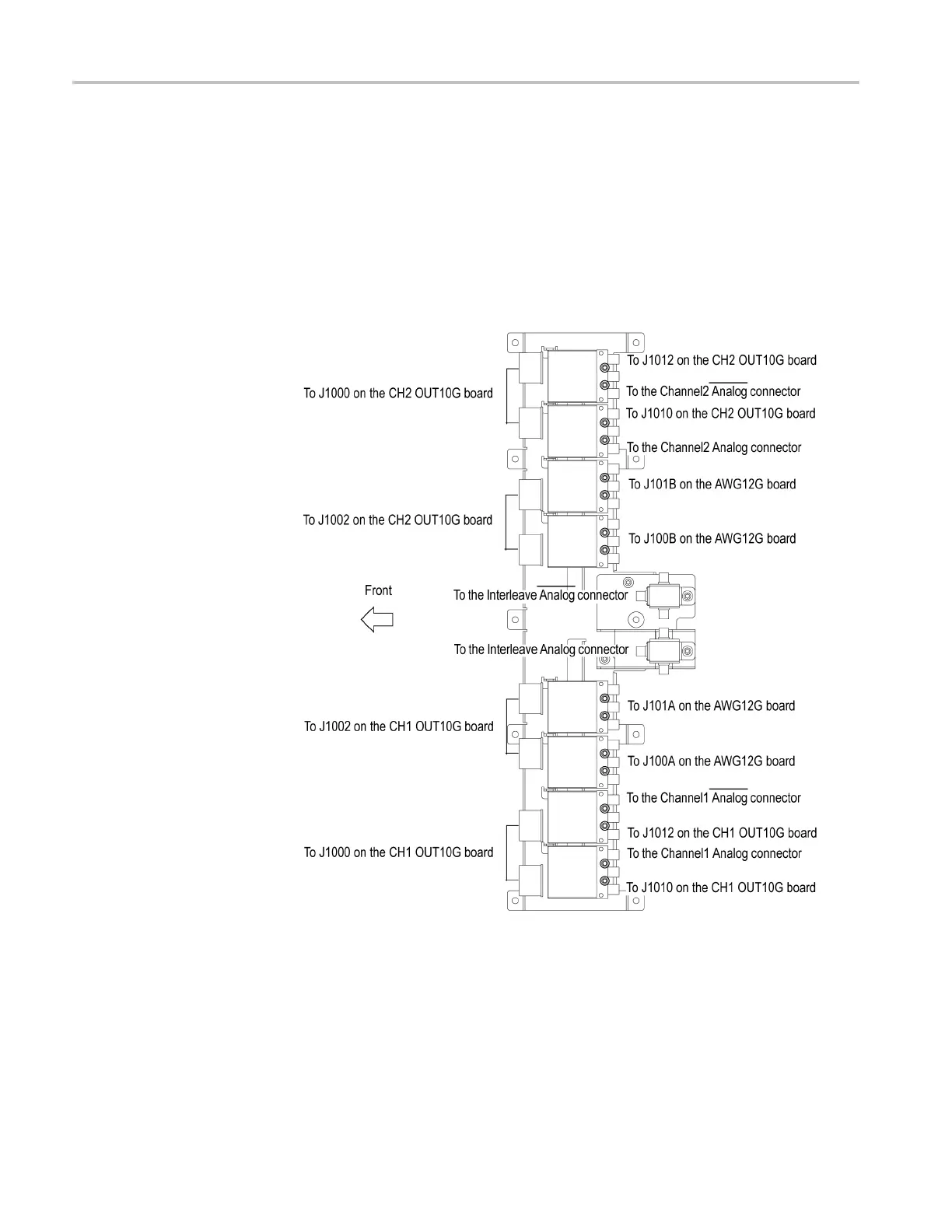

Figure 4-22: Relay unit cable connection for option 06

4–44 AWG7000B and AWG7000C Series Service Manual
