Tektronix AWG7000B Series - Figure 4-4: Handle, Snaps, Cosmetic Covers, and Front-Trim Unit Removal

174 pages

To Next Page

To Previous Page

Removal and Installation Procedures

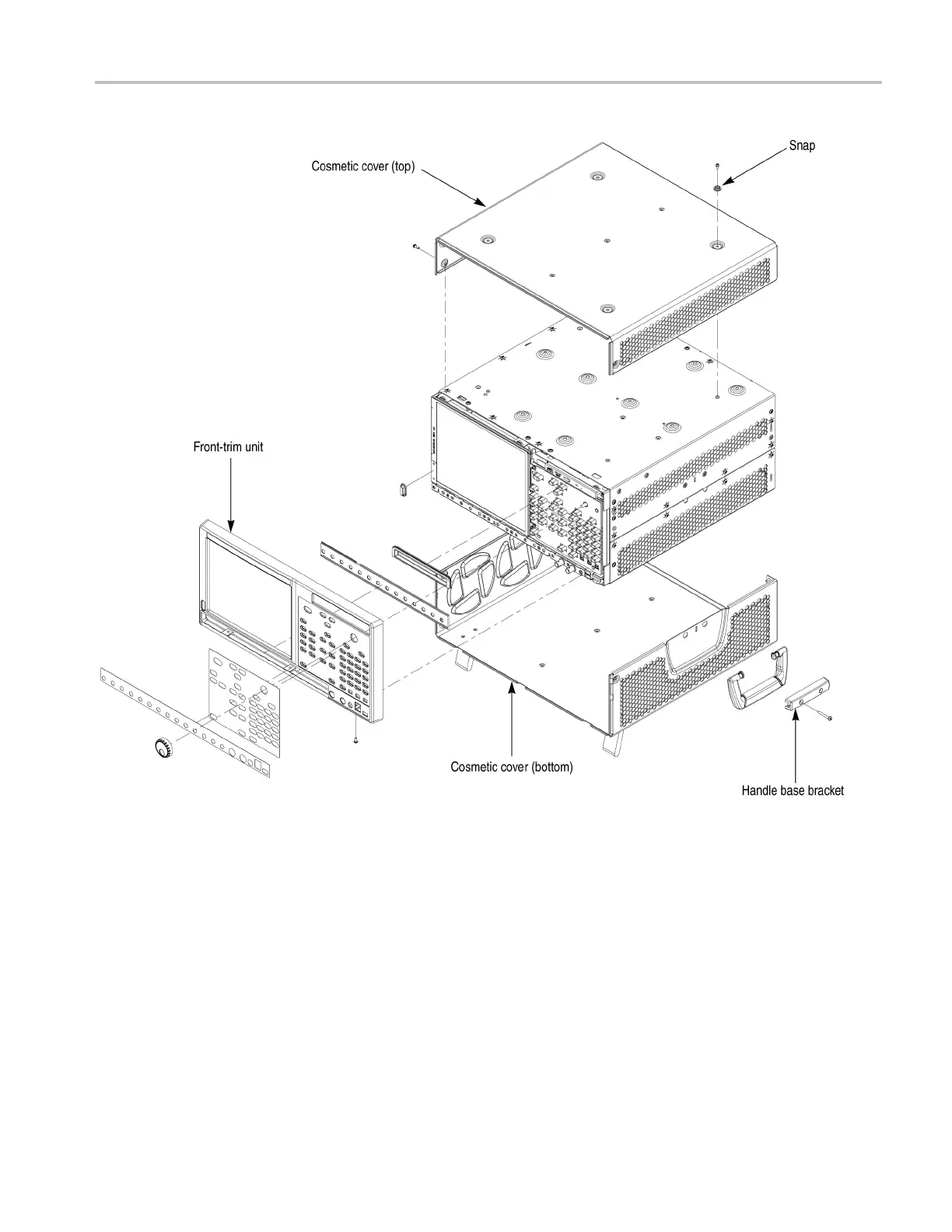

Figure 4-4: Handle, snaps, cosmetic covers, and front-trim unit removal

AWG7000B and AWG7000C Series Service Manual 4–11
