Replaceable Parts
Table 5-3: Repl
aceable parts list – AWG7000C Series chassis assembly
Fig. & index
number
Tektronix
part number
Serial no.
effective
Serial no.
discont’d Qty Name & descrip
tion
5-3-
CHASSIS ASSEMBLY
-1 131-6417-00 6
CONTACT,ELEC; GROUNDING,0.600 L X 0.250 W X 0.220 D,
ELECTROLESS NICKEL PLATE
-2 348-0966-00 1
GROMMET,PLASTIC;BLACK,ROUND,0.625 ID
-3 441-2630-00 1
CHASSIS, MAI
N; ASSEMBLY
(INCLUDES #4 AND #7)
-4 441-2585-00 1
BRACKET, IO
M-BOARD, SAFETY CONTROLLED
-5
174-5763-00 1
CABLE, SATA TO E-SATA, DATA ONLY
-6 211-0294-
00
2
SCREW, MACHINE; M3 X 0.5 X 10MM, PNH, STEEL, ZINC PLATED,
T-10 TORX DR
-7
211-1050
-00
10
SCREW, MACHINE; 6-32 X 0.312 L, PNH, STEEL, ZINC FINISH, T15
Fig

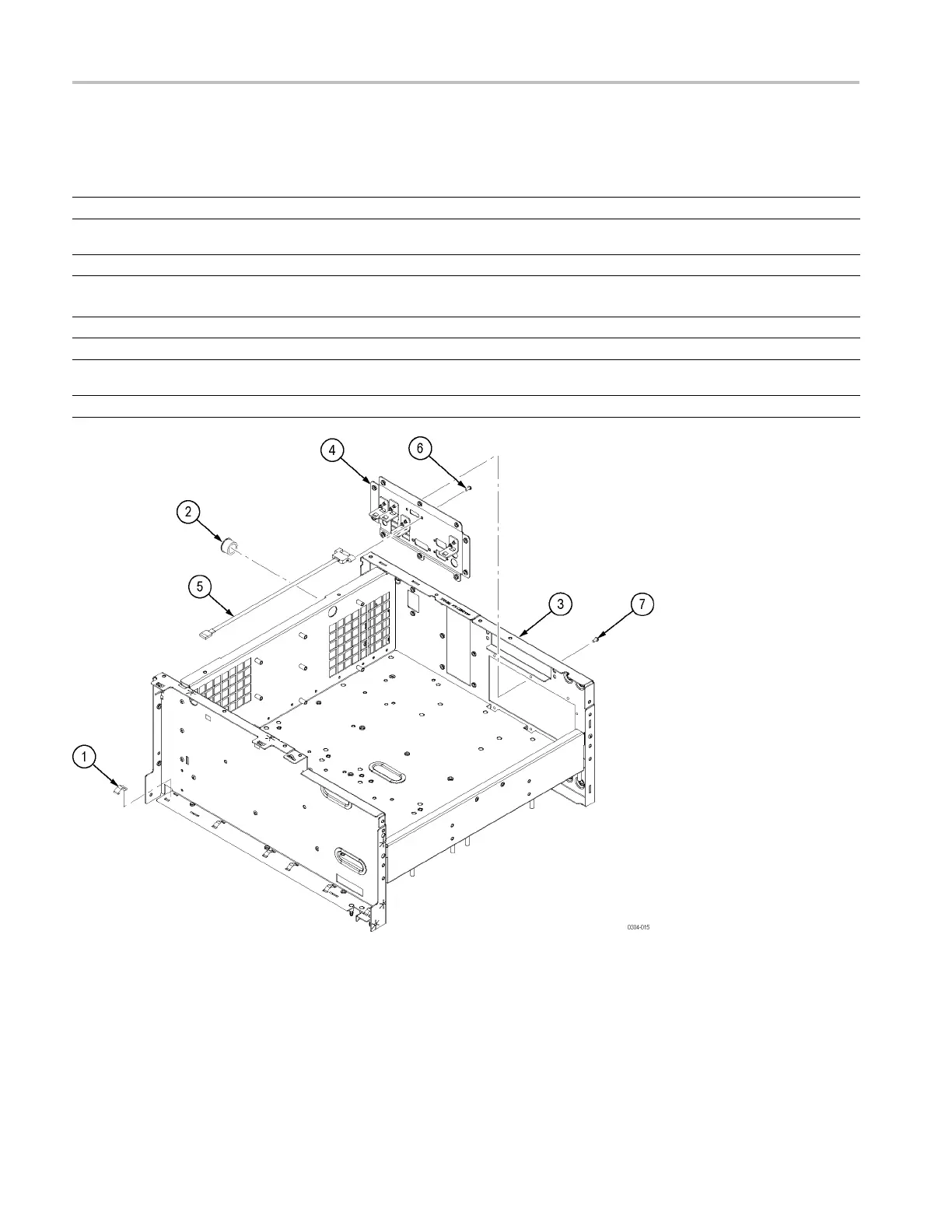

ure 5-3: AWG7000C Series chassis assembly
5–6 AWG7000B and AWG7000C Series Service Manual
