Theory of Operation

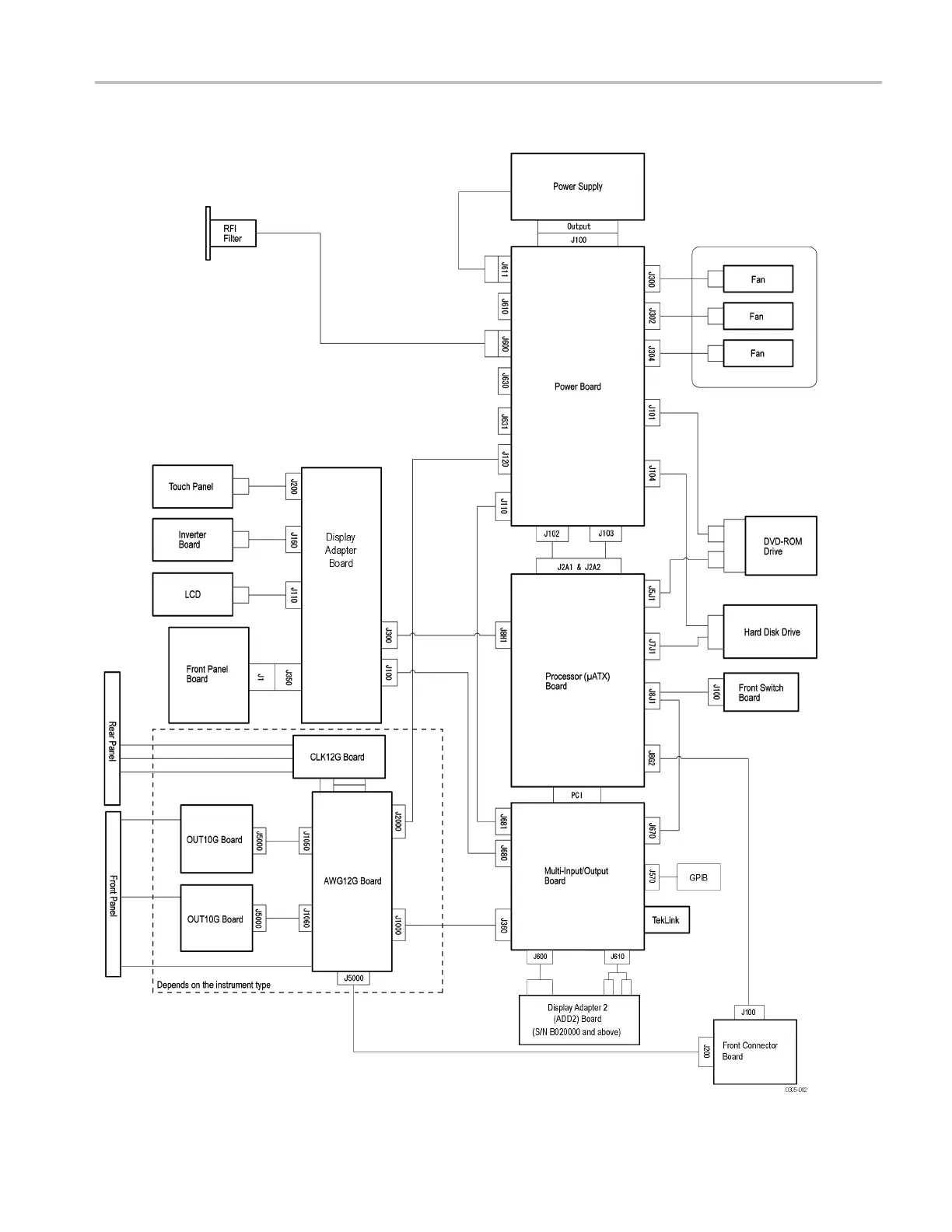

Figure 2-2: AWG7000B Series block diagram

AWG7000B and AWG7000C Series Service Manual 2–3
