Tektronix AWG7000B Series - Figure 4-20: Disassembly of the CLK12 G Module

174 pages

To Next Page

To Previous Page

Removal and Installation Procedures

Figu

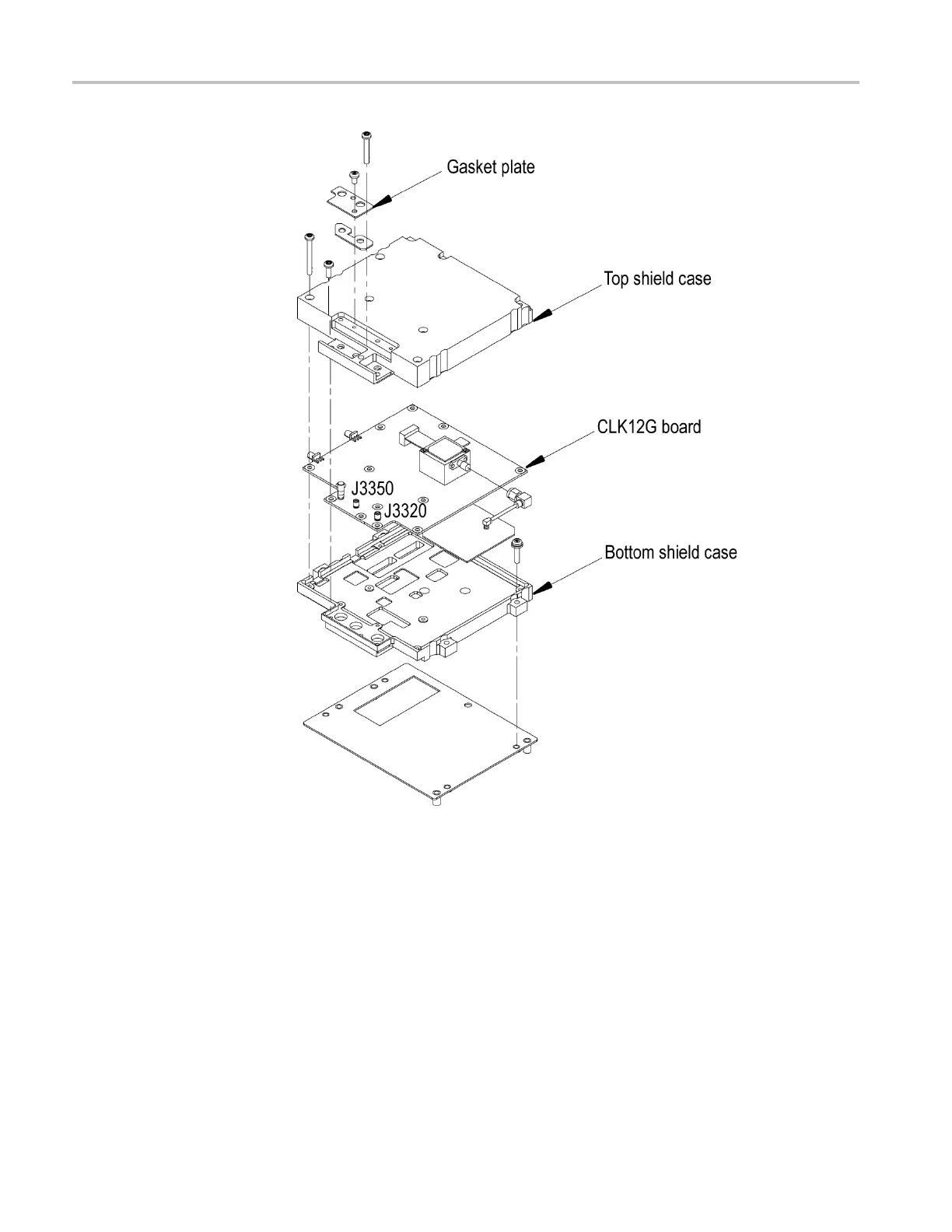

re 4-20: Disassembly of the CLK12G module

4–42 AWG7000B and AWG7000C Series Service Manual
