Adjustment Procedures

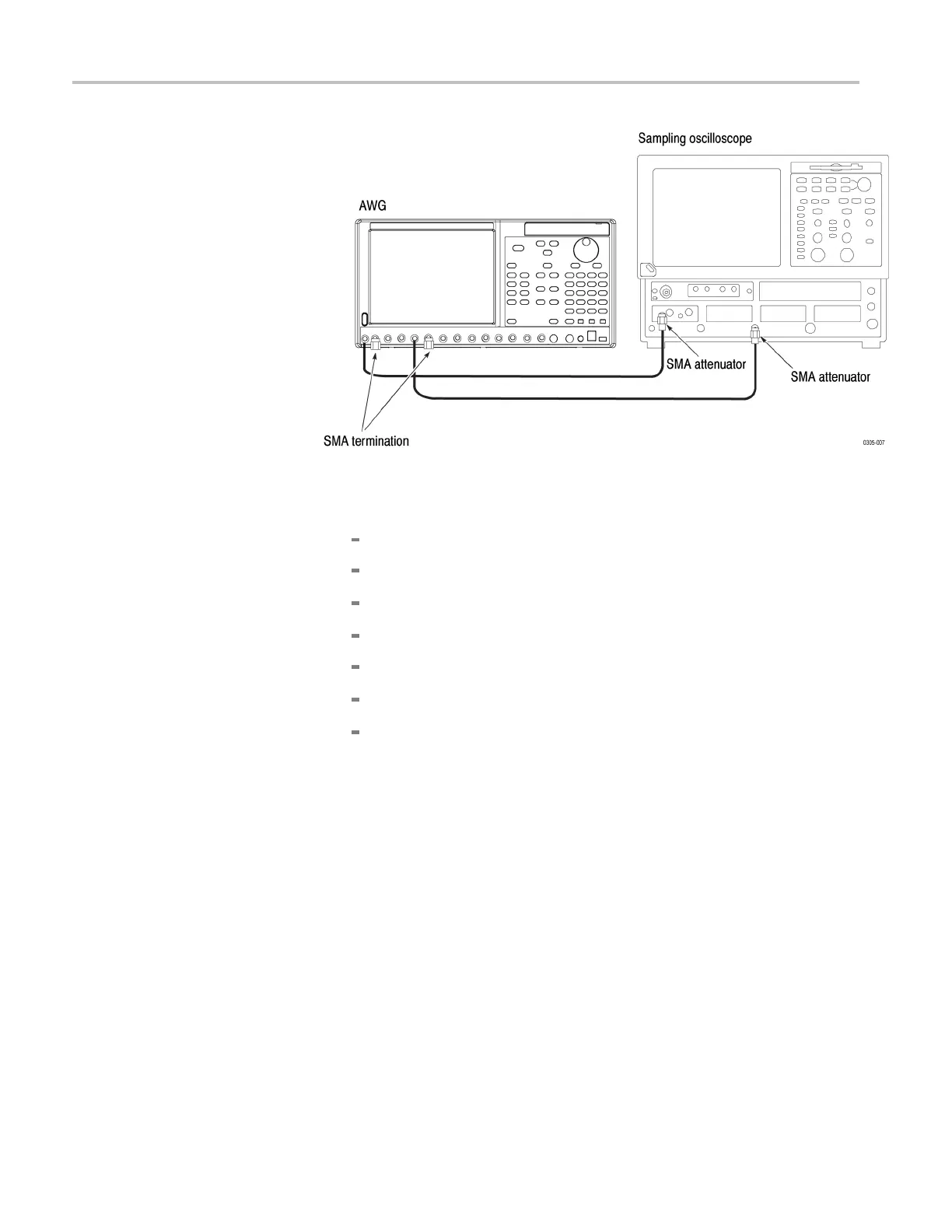

Figure 3-6: Interleave calibration initial hookup

b. Set the sampling oscilloscope as follows:

Vertical External Attenuation: 12 dB

Vertical Scale: 100 mV/div

Horizontal Scale: 1 ns/div

Horizontal Timebase Mode: Lock to INT. 10 MHz

Trigg

er: External Direct Input, Level 50%

Acquisition: Average 64

Measurement: C1 High Level, C1 Low Level, R1-Rise to C1-Rise

Delay

2. Click the Interleave... button in the AwgService UI window to display the

Interleave Calibration window. (See Figure 3-7.)

3–12 AWG7000B and AWG7000C Series Service Manual
