Tektronix AWG7000B Series

To Next Page

To Previous Page

Replaceable Parts

Figure

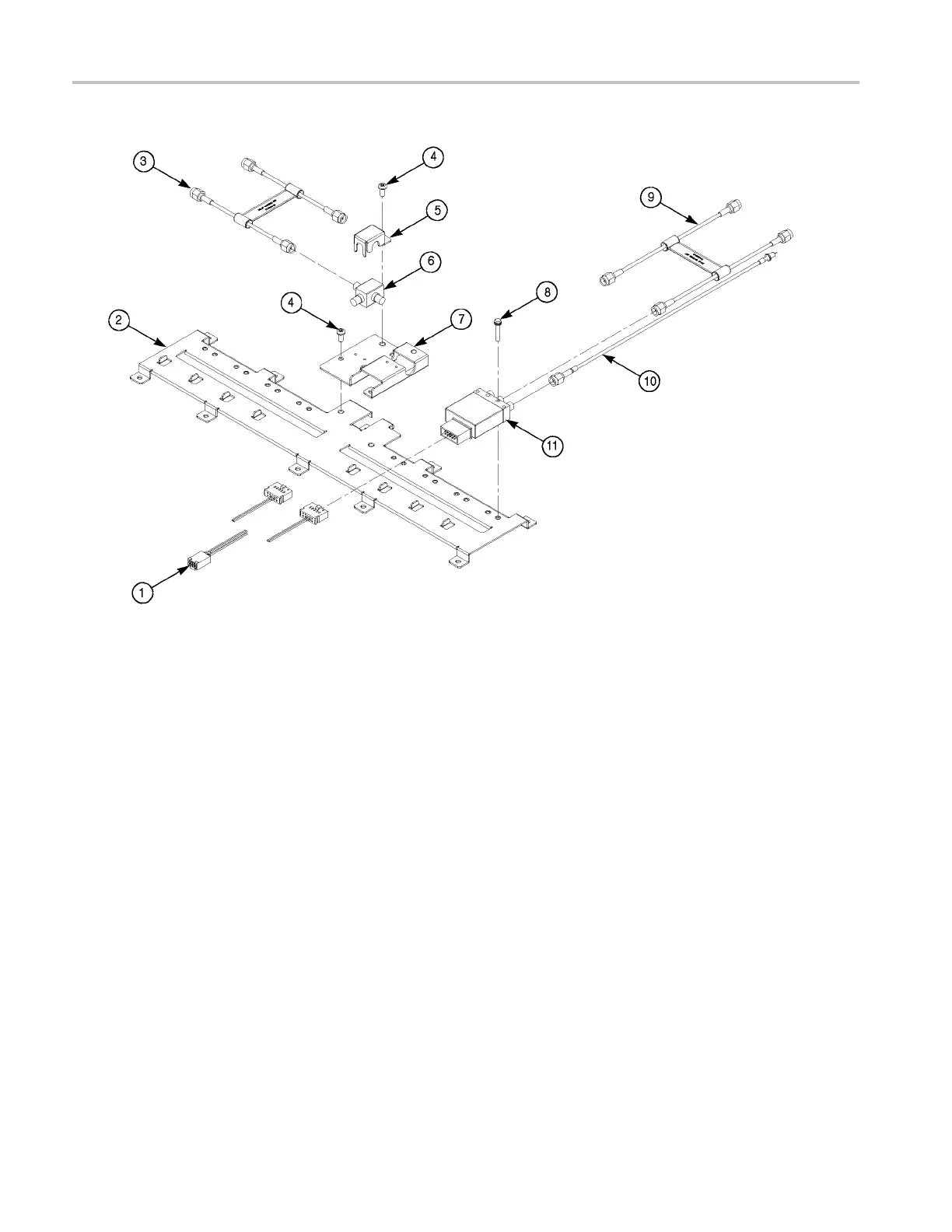

5-21: Relay unit

5–40 AWG7000B and AWG7000C Series Service Manual

Main Page
