Maintenance
Cable/Circuit Board Assembly

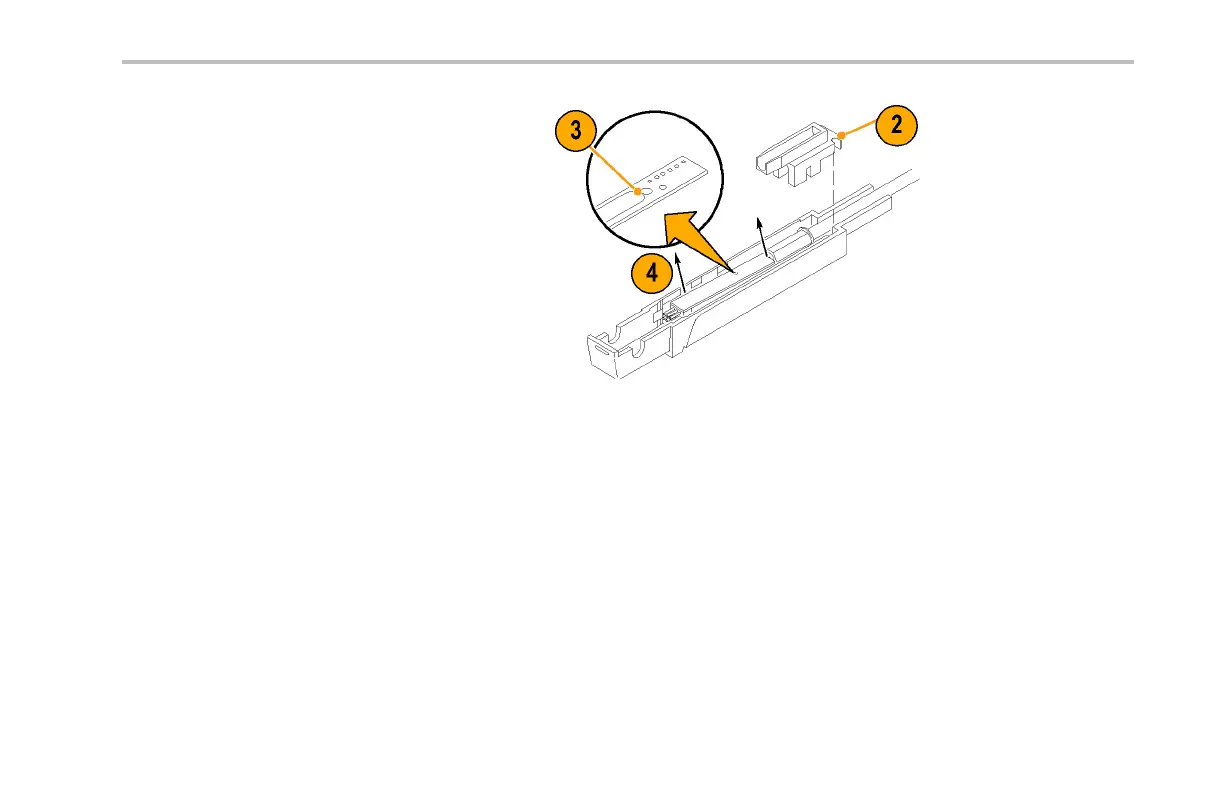

To replace the cable/circuit board assembly, do
the following:
1. Remove the transformer as described in
the previous p rocedure. (See page 72,
Transformer.)
2. Lift the plastic cable housing from the
probe b ody half.
3. Unsolder the probe body connection on
the circuit board. Be careful not to damage
the circuit board.
4. Lift the circuit board/cable assembly from
the probe body half.
5. Proceed to the Compensation Box
procedure to detach the cable from the
compensation box. (See page 74.)
6. To reassemble the probe after replacing
the cable, do steps 1 through 5 of this
procedure in reverse. (See following
Caution statement.)
TCP0030 C urren t Probe Instruction Manual 73
