Maintenance
CAUTION. To avoid damaging the wires inside the probe, carefully dre ss the wires in the lower body half to avoid contact with the
slide assembly. Exercise care when fitting th e slide back into the probe body; aligning the switch c ontacts requires precision.
Compensation Box

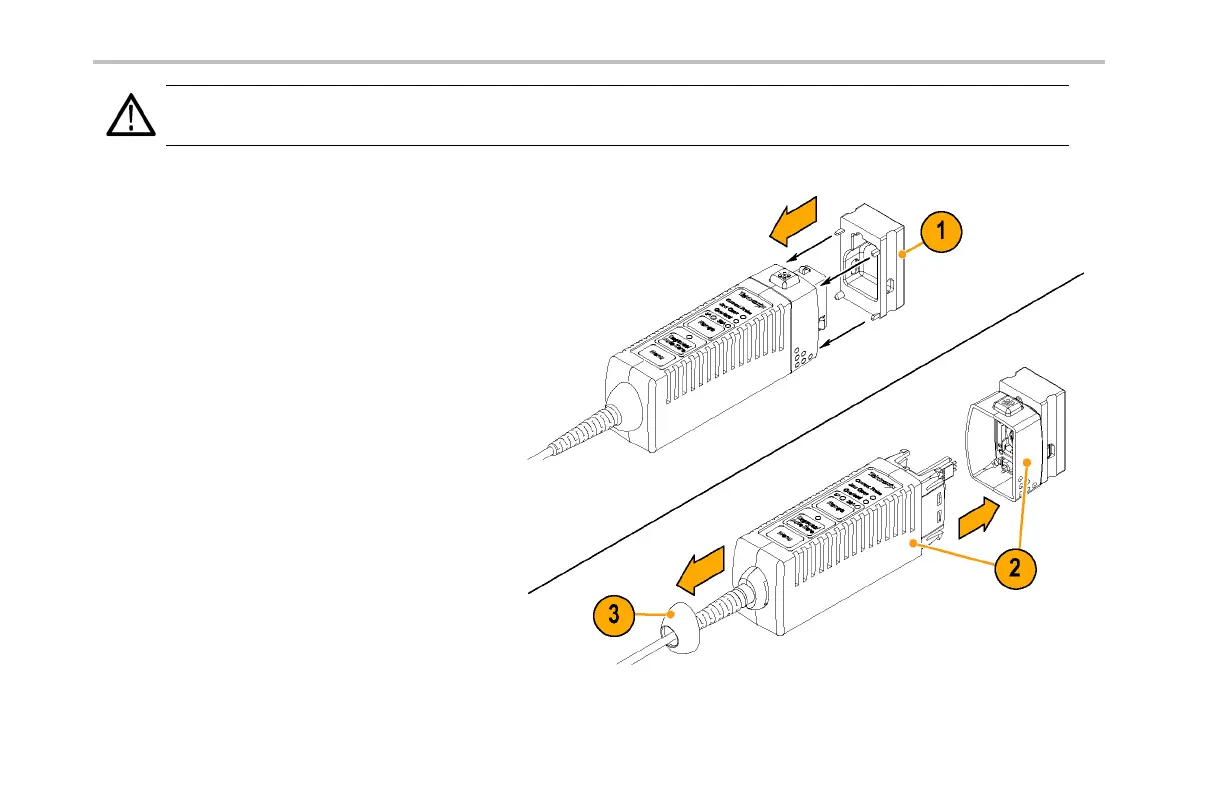

1. Insert the separator tool into the four
holes to disengage the front and ba ck
compensation box sections from each
other.
2. Grasp the tool and front section together
with one hand. Hold the back s ection with
the other hand and gently pull the two
sections ap art.
3. Pull the cable grommet away from the back
section of the compensatio n box.
74 TCP0030 Current Probe Instruction Manual
