Getting Started
1-2
TDS3000B Serie s User Manual

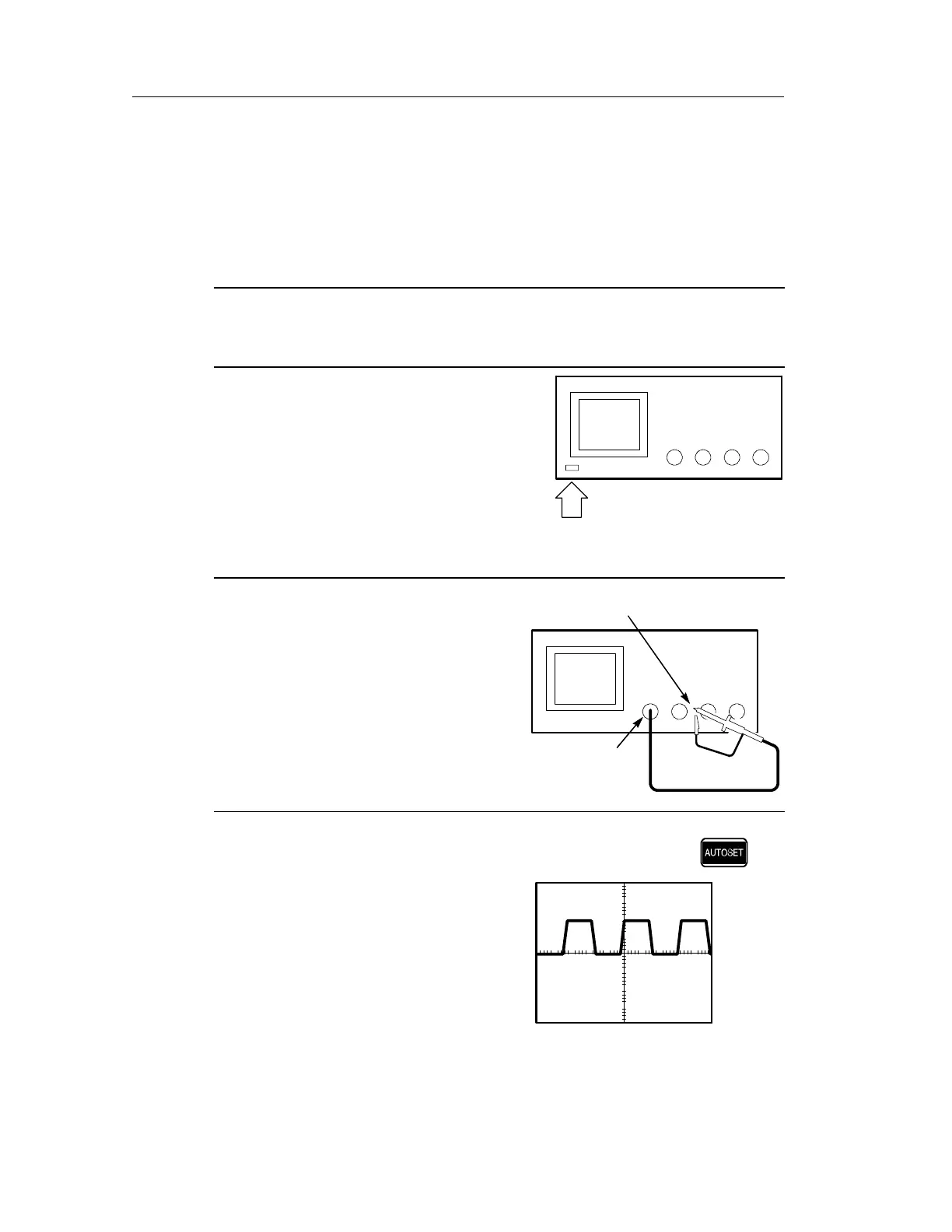

Functional Check
Perform this quick functional check to verify that your oscilloscope
is operating correctly.
1. Connect the oscilloscope power
cable (refer to page 1--11).
2. Turn on the oscilloscope.
Wait for the confirmation that
all self t ests have passed.
PASSED
On/Standby
button
3. Connect the oscilloscope probe
to channel 1. Attach the probe
tip and reference lead to the
PROBE COMP connectors.
CH 1
PROBE COMP
4. Push the AUTOSET button.
You should see a square wave in
the display (approximately 5 V
at 1 kHz).
