Tektronix TDS3000B Series - Front and Rear Panel Connectors

Getting Started
TDS3000B Serie s User Manual
1-31
Front-Panel Connectors
≈ 5V 
1
2
CH 4CH 3
CH 2CH 1
1MΩ, 13pF ≤150 VRMS CATl
PROBE COMP
3
PROBE COMP
≈ 5V 
2
1
EXT TRIG
50Ω
≤5VRMS
50Ω
≤5VRMS
1MΩ, 13pF ≤150 VRMS CATl
1MΩ, 13pF ≤150 VRMS CATl
CH 2CH 1
50Ω
≤5VRMS
1MΩ, 17pF ≤150 VRMS CATl

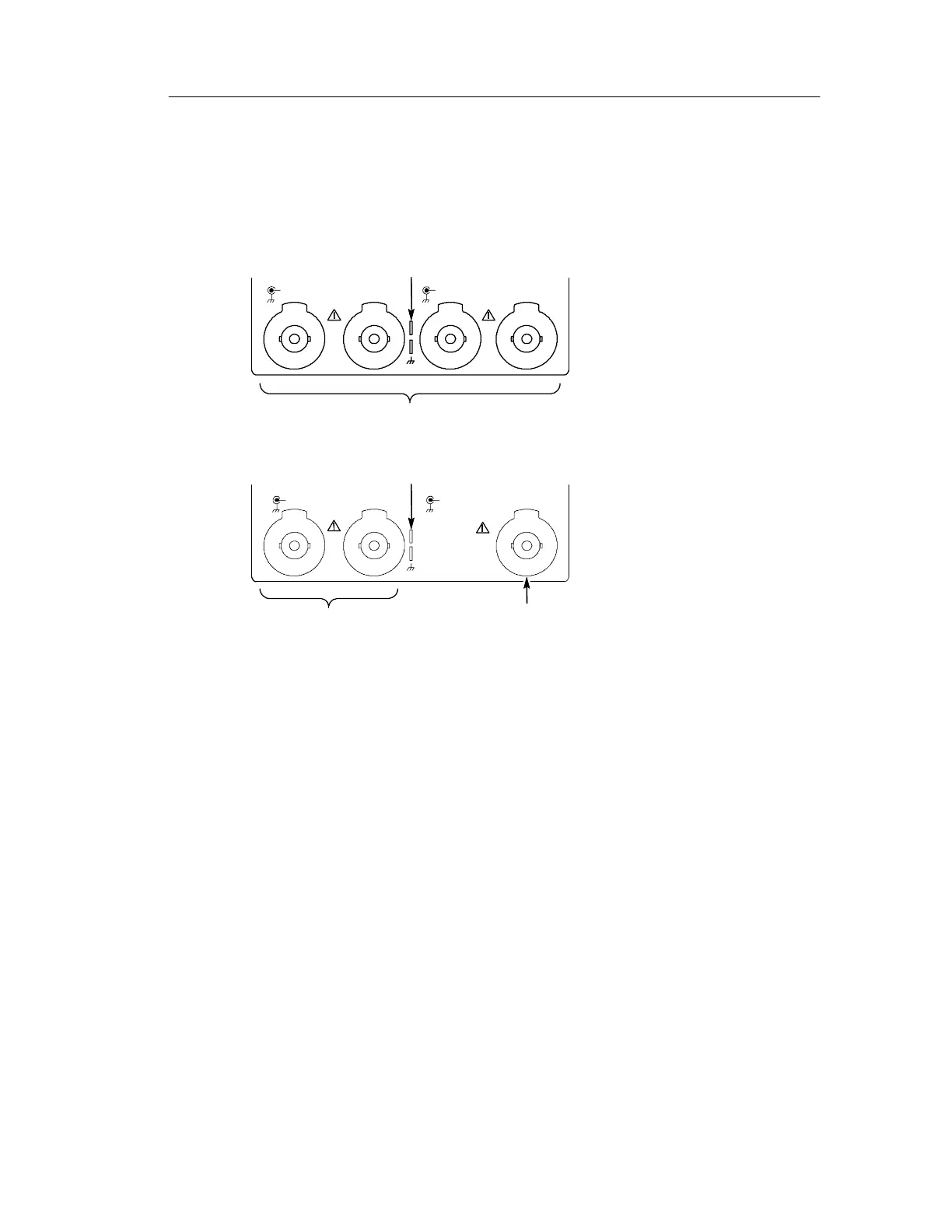

1. PROBE C OMP. Square wave signal source to compensate
probes.
2. CH 1, CH 2, (CH 3, CH 4). Channel inputs with TekProbe
interface.
3. EXT TRIG. External t rigger input with TekProbe int erface
(two-channel models only).
