Tektronix TDS3000B Series User Manual

Getting Started
TDS3000B Serie s User Manual
1-3

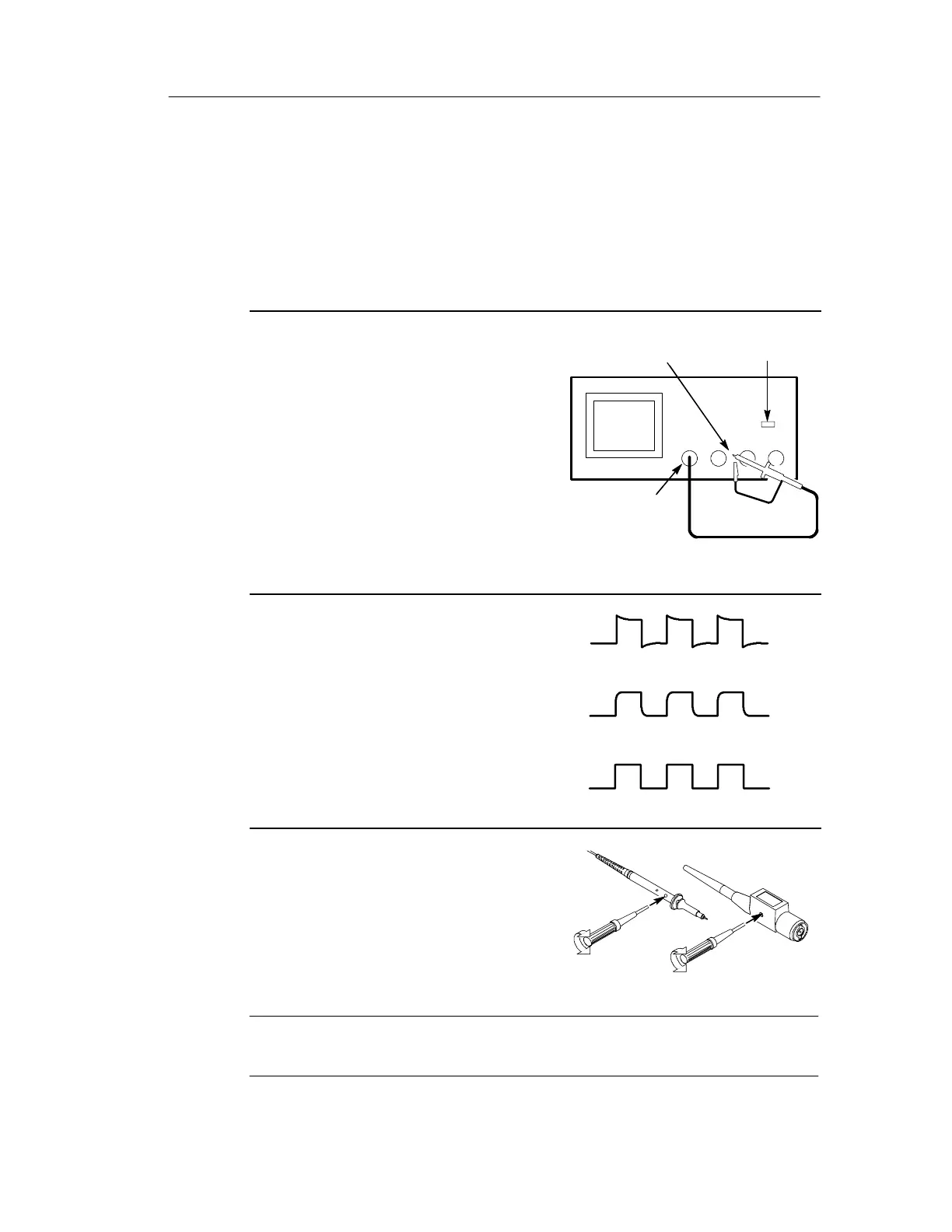

Probe Compensation
Perform thi s adjustment to match your probe to the input channel.
This should be done whenever you attach a passive probe for the first
time to any input channel.
1. Connect the oscilloscope probe
to channel 1. Attach the probe
tip and reference lead to the
PROBE COMP connectors,
then push AUTOSET.
If using the probe hook-t ip,
ensure a proper connection by
firmly twisting the tip onto the
probe.
CH 1
PROBE COMP
A
UTOSET
button
2. Check the shape of the displayed
waveform.
Overcompensated
Compensated correctly
Undercompensated
3. If necessary, adj ust your probe.
Repeat as necessary.
L
P3010 P6139A
NOTE.SeeAppendix D: Probe Basic s for more information about the
probes provided with your oscilloscope.
