Getting Started
1-26
TDS3000B Serie s User Manual
15. Horizontal SCALE. Adjusts the horizontal scale factor.
16. Horizontal zoom. Splits the screen and magnifies the current
acquisition horizontally.
17. Waveform OFF. Removes selected waveform from the display.
18. Vertical SCALE. Adjusts selected waveform vertical scale factor.
19. CH1, CH2, (CH3, CH4,) MATH. Displays a waveform and
chooses the selec ted waveform. REF shows the reference
waveform menu.

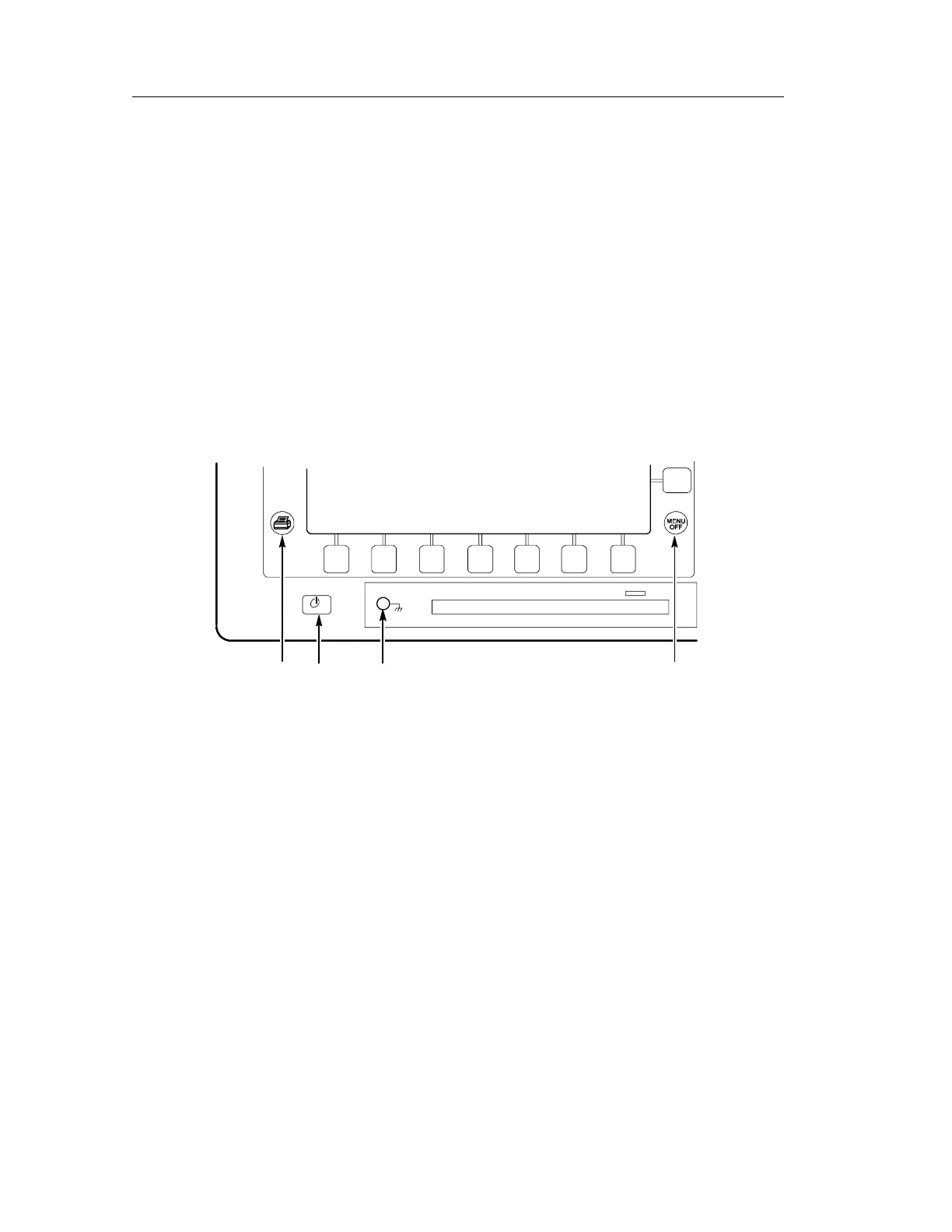

20 2321 22
20. Hard copy. Initiates a hard copy using the port selected in the
Utility menu.
21. Power switch. Turns power to on or standby. Power-up time
varies from about 15 seconds t o 45 seconds, depe nding on the
oscilloscope internal calibration process.
22. Wrist-strap ground. Connect a wrist strap when working with
ESD-sensitive circuits. This connector is not a safety ground.
23. MENU OFF. Clears menu from t he di spl ay.
