Tektronix TDS3000C Series User Manual

Reference

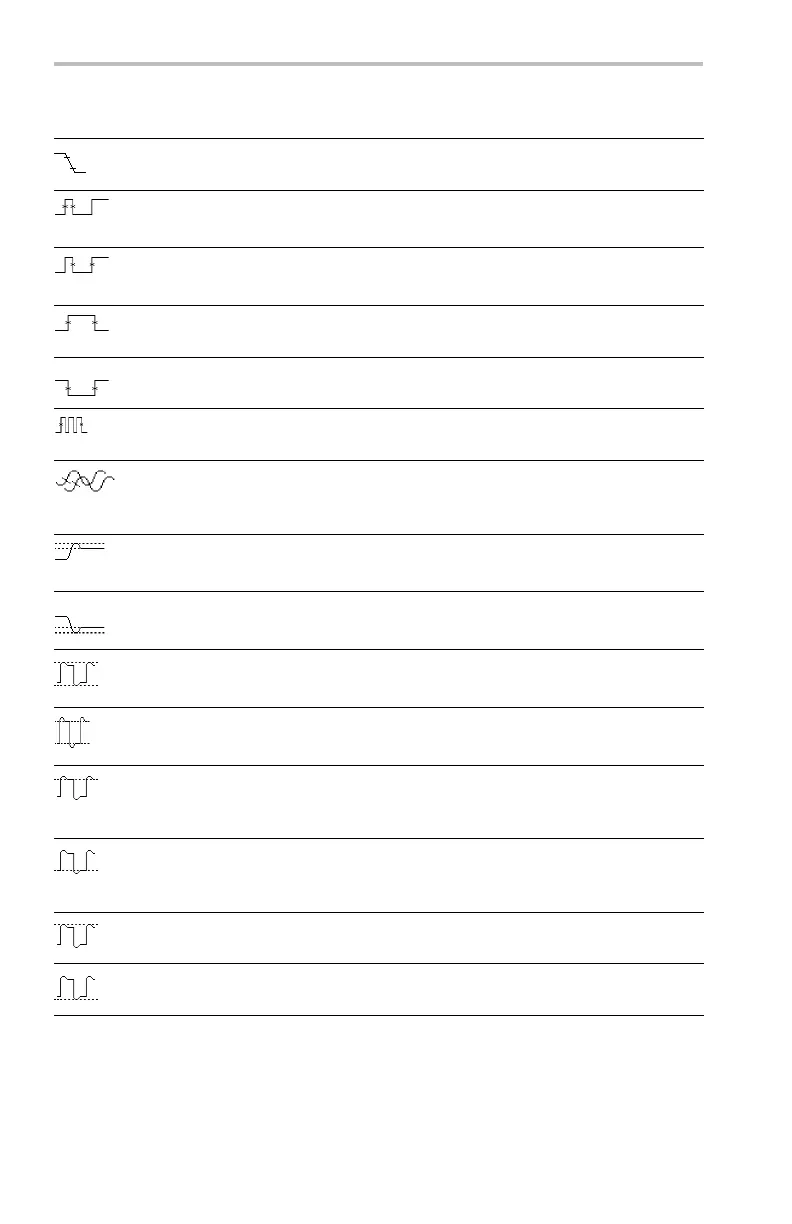

Measurement nam e Definition
Fall Time
Time that th e falling edge of the first pulse in the
waveform takes to fall from 90% to 10% of its amplitude.
Positive Duty
Cycle
Measurement of the first cycle in the waveform.
Positive Duty Cycle = Positive Wid th/Period × 100%
Negative Duty
Cycle
Measurement of the first cycle in the waveform.
Negative Duty Cycle = Negative Width/Period × 100%
Positive Pulse
Width
Measurement of the first positive pulse in the waveform;
time between t he 50% amplitude points.
Negative
Pulse Width
Measurement of t
he first negative pulse in the waveform;
time between th
e 50% amplitude points.
Burst Width
The duration of a burst. Measured over the entire
waveform.
Phase
Timing measurement. The amount one waveform leads
or lags another in time. Expressed in degrees, where
360° comprise one waveform cycle.
Positive
Overshoot
Measured over the entire waveform.
Positive Overshoot = (Max-High)/Amplitude × 100 %
Negative
Overshoot
Measured over the entire waveform.
Negative Overshoot = (Low-Min)/Amplitude × 100%
P
k-Pk
Measured over the entire waveform.
Peak-to-peak = Max - M in
Amplitude
Measured over the entire waveform.
Amplitude = High (100%) - Low (0%)
High
The value used as 100%. Calculated using either the
min/max or the histogram method. Measured over the
entire w avefor m .
Low
The v alue used as 0%. Calculated using either the
min/max or the histogram method. Measured over the
entire w avefor m .
Max The maximum amplitude. The most positive peak voltage
measured over the entire waveform.
Min The minimum amplitude. The most negative peak
voltage measu red over the entire waveform.
100 TDS3000C Series Oscilloscope User Manual
