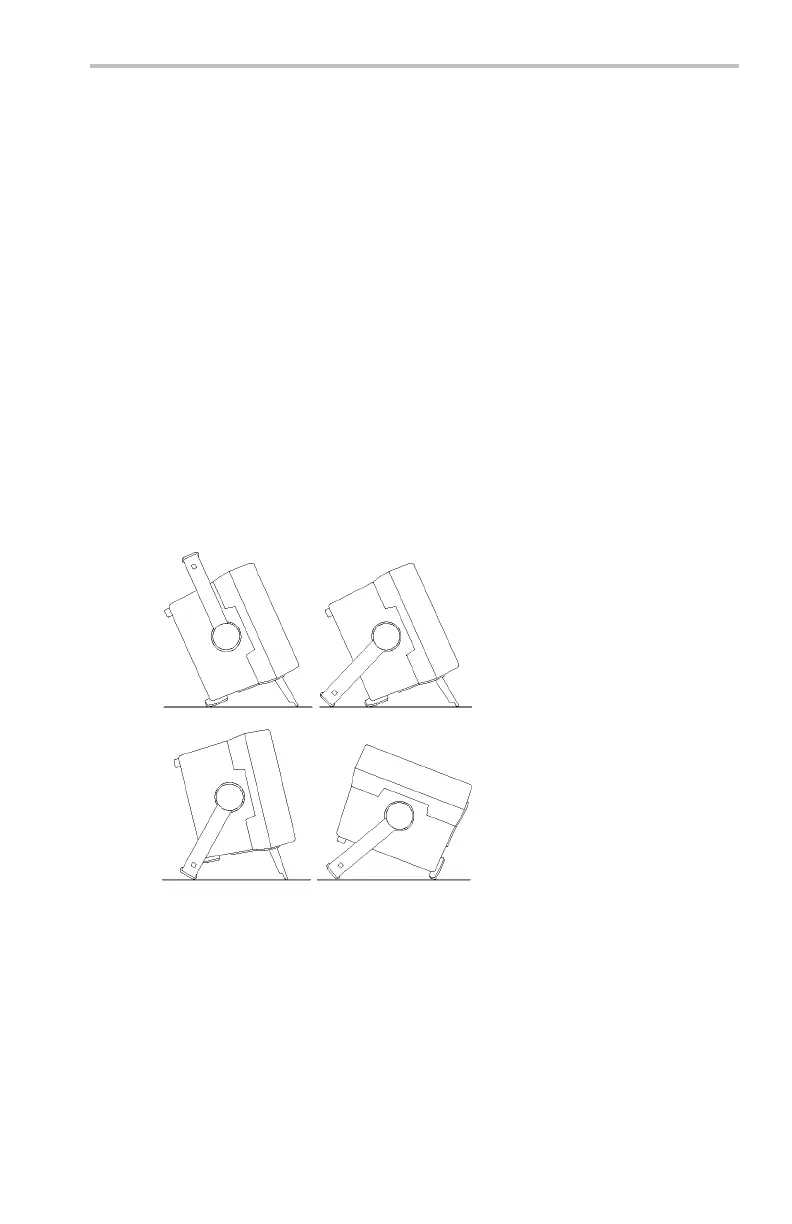

Getting Started
Installing an Application Module
CAUTION. To avoid damage to the oscilloscope or application module, observe
the ESD precau
tions. (See page xvi.)
Optional application modules are available to extend the capability of your
oscillosco
pe. You can install up to four application modules at one time.
Application modules can go into the two slots with windows in the upper right
corner of the front panel. Two additional slots are directly behind the two you
can see.
Refer to the TDS3000, TDS3000B, and TDS3000C Series Application Module
Installation Manual that came with your application module for instructions on
installing and testing an application module.
NOTE. If you remove an application module, the features provided by the
applic
ation module become unavailable. You can reinstall the module to restore
the features.
Installing the Communication Module
CAUTI
ON. To avoid damage to the oscilloscope or communication module,
observe the ESD precautions. (See page xvi.)
To i
nstall the optional communications module, follow these steps:
1. Turn the oscilloscope power off.
2. Press down on the latching tab to remove the blank cover.
3. Slide the communication m odule into the compartment until the internal
connectors are seated and the latching tab locks.
4. Turn the power on. The communication module is now ready for your use.
TDS3000C Series Oscilloscope User Manual 13
