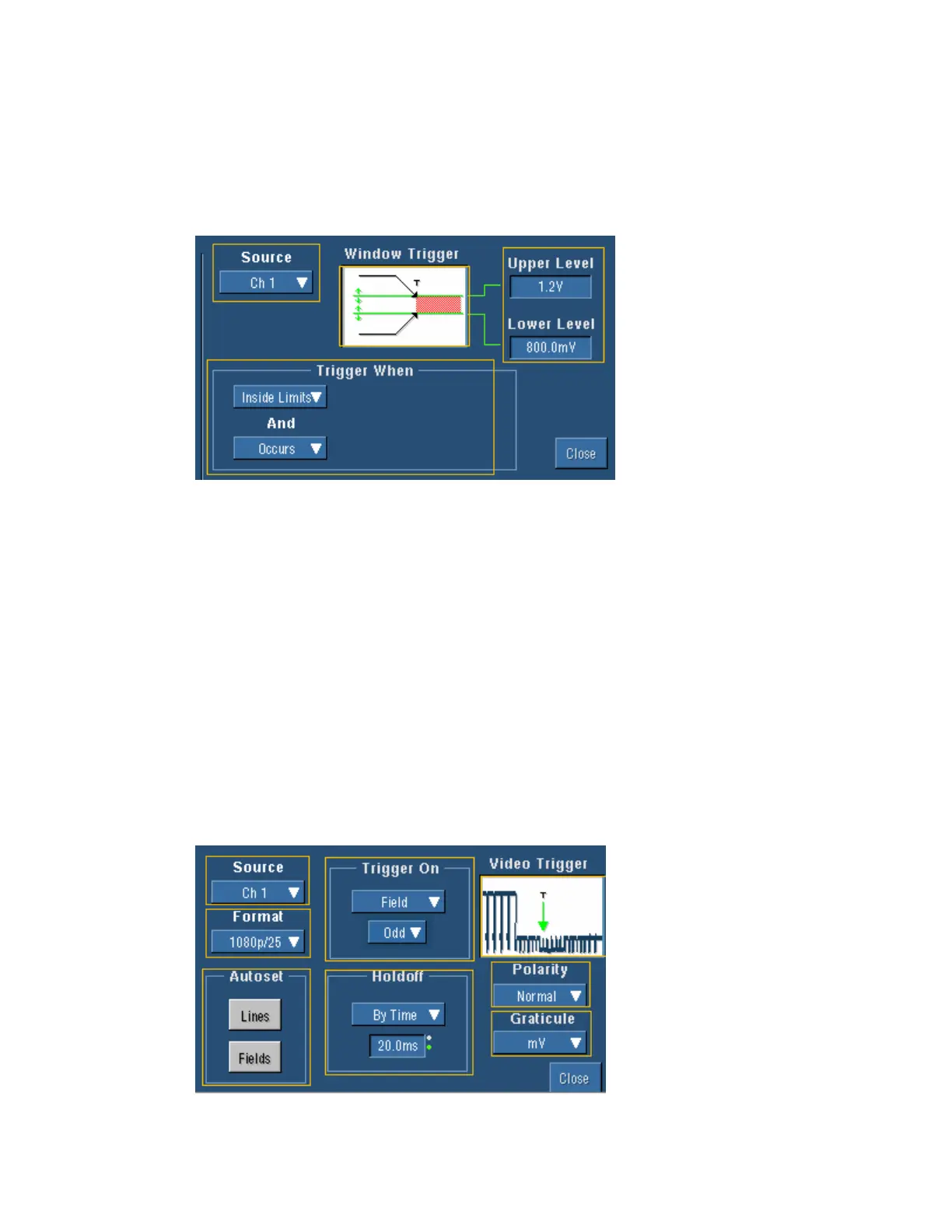

Window Trigger Control Window
To Use
Use these controls to set the Window trigger parameters.
Behavior
Use the Window trigger to trigger the instrument when the input signal rises above an upper
threshold level or falls below a lower threshold level. After setting these levels, you can specify
whether you want to trigger the instrument as the signal is entering or leaving the threshold
window. You can further qualify the trigger event in terms of time by using the Trigger When
Wider option, or by the logical state of other channels using the Trigger When Logic option.
Note that the Trigger When controls change as you select different combinations of options.
Note
The Trigger When Logic option is only available on 4-channel models.
Video Trigger Control Window
To Use
Use these controls to set the Video trigger parameters.
